47686/47620 RICH 82,55x133,35x33,338

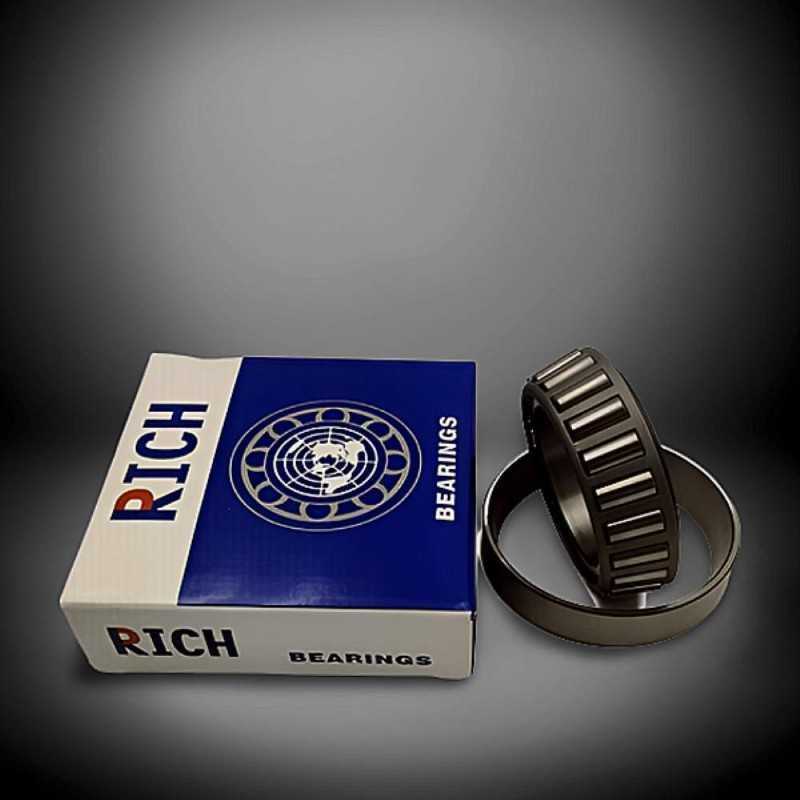

47686/20 RICH Single Row Tapered Roller Bearing - 82.55 x 133.35 x 33.338 mm
Technical Specifications:
- Product Type: Single Row Tapered Roller Bearing
- Model Designation: 47686/20
- Brand: RICH
- Inner Diameter (d): 82.55 mm
- Outer Diameter (D): 133.35 mm
- Overall Width (T): 33.338 mm
- Outer Ring Width (C): 26.195 mm
- Inner Ring Width: 33.338 mm
- Country of Origin: China
The 47686/20 RICH is a heavy-duty, precision-engineered single row tapered roller bearing manufactured by RICH. This robust bearing is specifically designed to manage high combined radial and axial loads simultaneously, making it an essential component in critical industrial and automotive applications. It features precise dimensions: 82.55 mm bore, 133.35 mm outer diameter, and an overall width (T) of 33.338 mm. The bearing is a separable assembly, consisting of a cone (inner ring assembly) and a cup (outer ring). This design facilitates easier installation and allows for precise adjustment of the running clearance, ensuring optimal system rigidity and alignment. It is the ideal choice for demanding systems like transmissions, differentials, and large machinery requiring reliable performance under high force.
Key Performance Advantages:
- High Combined Load Capacity: Tapered roller geometry efficiently supports significant radial and axial forces.
- Separable Design: Cone and cup can be mounted independently, aiding in simplified assembly and clearance adjustment.
- Precision Engineered: Built to exacting dimensional standards for reliable, high-rigidity operation.
- RICH Quality: Provides the durability and performance needed for continuous use in heavy-duty environments.
Data sheet
Inner Diameter
82,55
Outer Diameter
133,35
Width
33,338
Weight
1,648
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Tapered Roller Bearing
