NUP 2203 RICH 17x40x16
Rating:
(0)
EUR €
- EUR €
- USD $

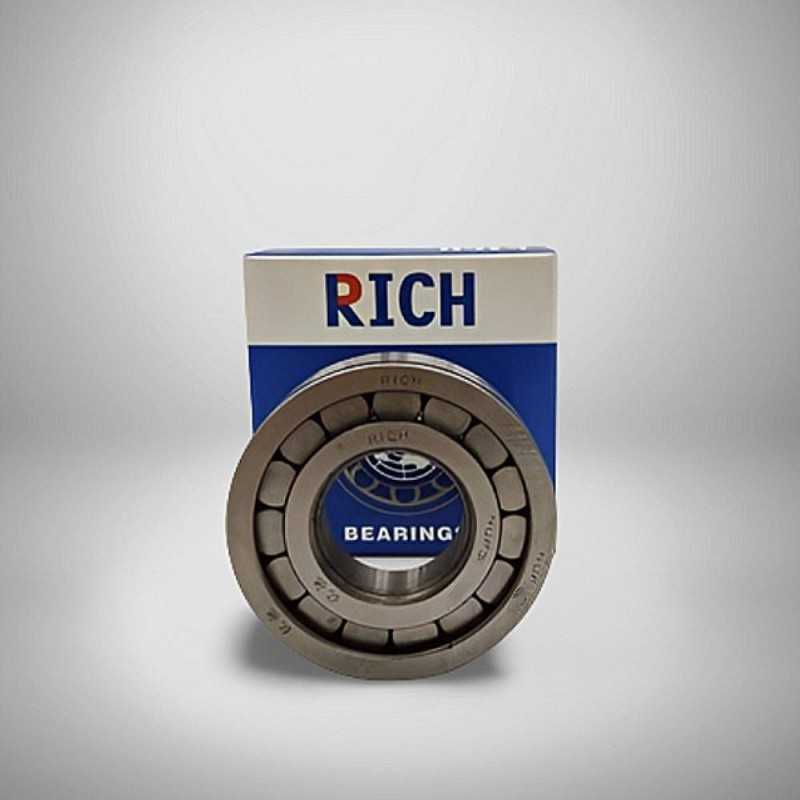

NUP 2203 RICH Single Row Cylindrical Roller Bearing - 17 x 40 x 16 mm
The NUP 2203 RICH is a single row cylindrical roller bearing designed for applications requiring high radial load capacity and the ability to accommodate axial displacement in one direction, as well as support axial loads in that direction. This bearing has key dimensions of 17 mm inner diameter, 40 mm outer diameter, and a width of 16 mm. It features a steel cage and weighs 0.098 kg. The NUP designation signifies that the outer ring has two fixed ribs, while the inner ring has one fixed rib and one loose rib. This design allows for axial movement of the shaft relative to the housing within specific limits. This particular RICH bearing is made in China.
Key Specifications:
- Bearing Type: Single Row Cylindrical Roller Bearing
- Model:** NUP 2203 RICH
- Inner Diameter (d):** 17 mm
- Outer Diameter (D):** 40 mm
- Width (B):** 16 mm
- Cage Material:** Steel
- Weight:** 0.098 kg
- Country of Origin:** China
Key Features:
- NUP Design:** Outer ring with two fixed ribs, inner ring with one fixed rib and one loose rib, enabling axial displacement in both directions and axial load support.
- Steel Cage:** Ensures excellent strength and precise roller guidance.
- Separable Components:** The inner ring assembly and outer ring can be mounted independently, simplifying installation and maintenance.
- Versatile Application:** Ideally suited for demanding applications in machine tools, gearboxes, electric motors, pumps, and various other industrial machinery where high radial loads and axial movement are present.
- Manufacturing Origin:** Made in China.
Data sheet
Inner Diameter
17
Outer Diameter
40
Width
16
Weight
0,09
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Cylindrical Roller Bearing
