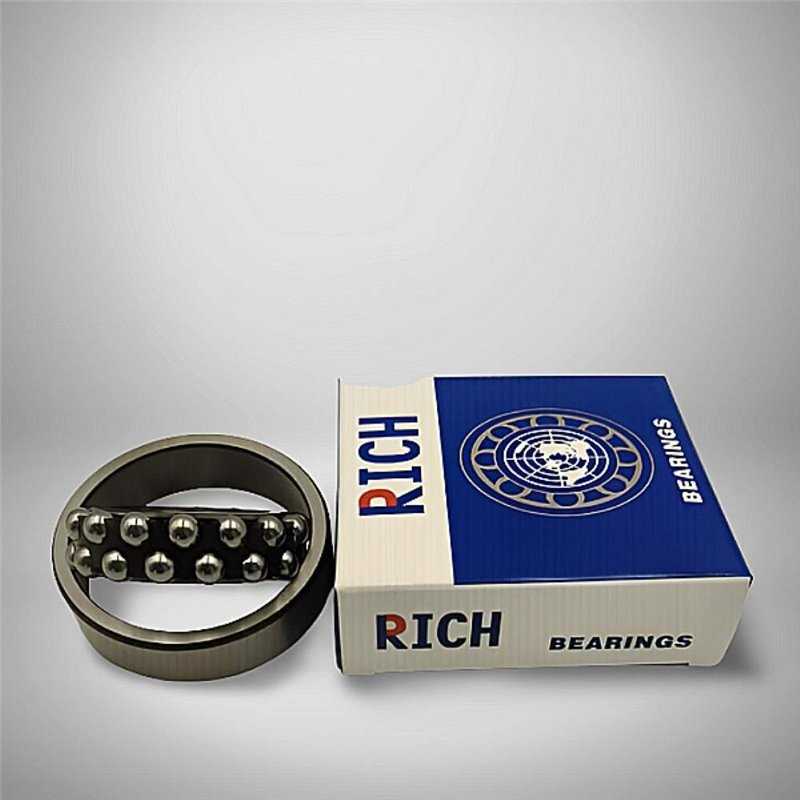

1303 C3 RICH 17x47x14 1303-C3 RICH
zoom_out_map
1303 C3 RICH 17x47x14 1303-C3 RICH

1303 C3 RICH 17x47x14

Type: Self‑Aligning Ball Bearing
Model: RICH 1303 C3 – 17 × 47 × 14
Cage: Steel
Clearance: C3
Sealing: Open Type
Weight: 0.13 kg
Origin: China
Brand: RICH
RICH
1303-C3
€1.40
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

1303 C3 RICH | Self‑Aligning Ball Bearing – 17 × 47 × 14

Technical Specifications:

  • Brand: RICH
  • Type: Self‑Aligning Ball Bearing
  • Inner Diameter (d): 17 mm
  • Outer Diameter (D): 47 mm
  • Width (B): 14 mm
  • Cage: Steel
  • Clearance: C3 (Greater than Normal)
  • Sealing: Open Type (No Seals)
  • Weight: 0.13 kg
  • Country of Origin: China

Performance Characteristics:

  • Self‑Aligning Geometry: The dual‑row ball arrangement and spherical outer raceway allow angular misalignment between shaft and housing.
  • Misalignment Compensation: The internal geometry accommodates mounting deviations without increasing friction or generating edge stresses.
  • C3 Clearance: The increased internal clearance supports thermal expansion and higher operating speeds under standard load conditions.
  • Steel Cage: The pressed steel cage maintains ball spacing and structural stability during continuous rotation.
  • Open Configuration: The absence of sealing elements allows external lubrication and direct inspection of the rolling elements.

The 1303 C3 RICH bearing is a self‑aligning ball bearing with dimensions 17 × 47 × 14 mm. Its spherical outer raceway enables compensation for shaft or housing misalignment, while the C3 clearance supports applications with increased thermal expansion or rotational speed.

Transparency Note: This bearing is manufactured under the RICH brand. All technical data refer exclusively to the RICH 1303 C3 model and do not imply association with other manufacturers.

Data sheet

Inner Diameter
17
Outer Diameter
47
Width
14
Weight
0,13
Clearance
C3 (Greater than Normal)
