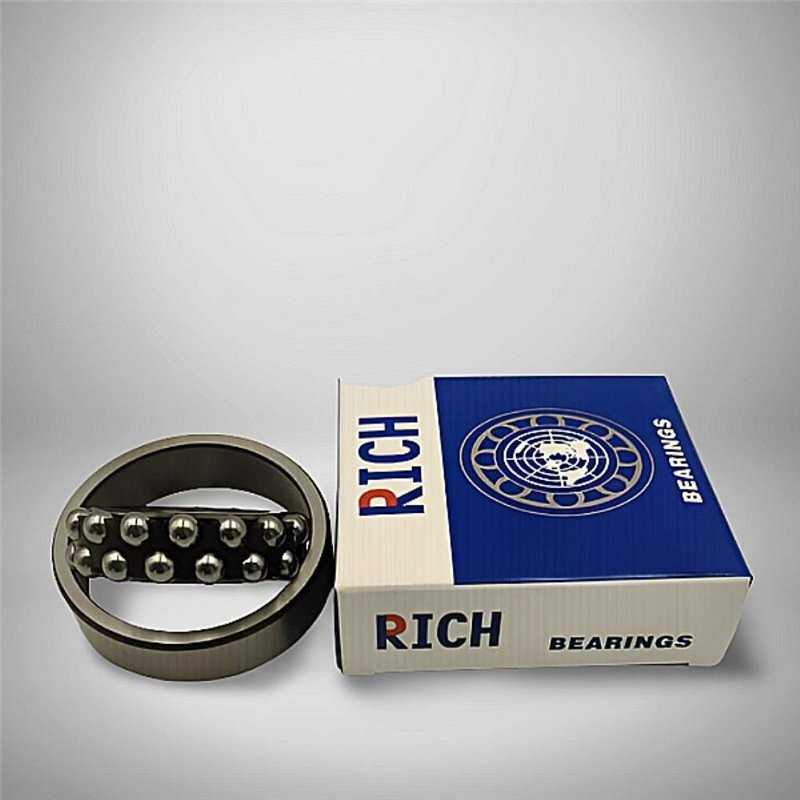

1307.TN RICH 35x80x21 1307TN RICH
zoom_out_map
1307.TN RICH 35x80x21 1307TN RICH

1307.TN RICH 35x80x21

Type: Self‑Aligning Ball Bearing
Model: RICH 1307.TN
Cage: Polyamide
Clearance: CN
Sealing: Open Type
Weight: 0.508 kg
Origin: China
Brand: RICH
RICH
1307TN
€4.08
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

1307.TN RICH | Self‑Aligning Ball Bearing – 35 × 80 × 21

Technical Specifications:

  • Brand: RICH
  • Type: Self‑Aligning Ball Bearing
  • Inner Diameter (d): 35 mm
  • Outer Diameter (D): 80 mm
  • Width (B): 21 mm
  • Cage: Polyamide
  • Clearance: CN (Normal Clearance)
  • Sealing: Open Type (No Seals)
  • Weight: 0.508 kg
  • Country of Origin: China

Performance Characteristics:

  • Spherical Raceway: The outer ring raceway is spherical, allowing compensation for angular misalignment between shaft and housing.
  • Dual‑Row Configuration: The two ball rows distribute loads uniformly and maintain stable rotation under radial and moderate axial loads.
  • Polyamide Cage: The molded cage provides low mass and stable ball guidance at standard operating speeds.
  • CN Clearance: Normal internal clearance suitable for applications with standard thermal expansion and alignment conditions.
  • Open Design: The absence of sealing elements allows external lubrication and direct inspection of the rolling elements.

The 1307.TN RICH bearing is a self‑aligning ball bearing with a dual‑row configuration and spherical outer raceway. The polyamide cage and CN clearance support stable operation in assemblies where shaft or housing misalignment may occur.

Transparency Note: This bearing is manufactured under the RICH brand. All technical data refer exclusively to the RICH 1307.TN model and do not imply association with other manufacturers.

Data sheet

Inner Diameter
35
Outer Diameter
80
Width
21
Weight
0,508
Cage
Polyamide Cage
