6007 NR RICH 35x62x14
Rating:
(0)
EUR €
- EUR €
- USD $

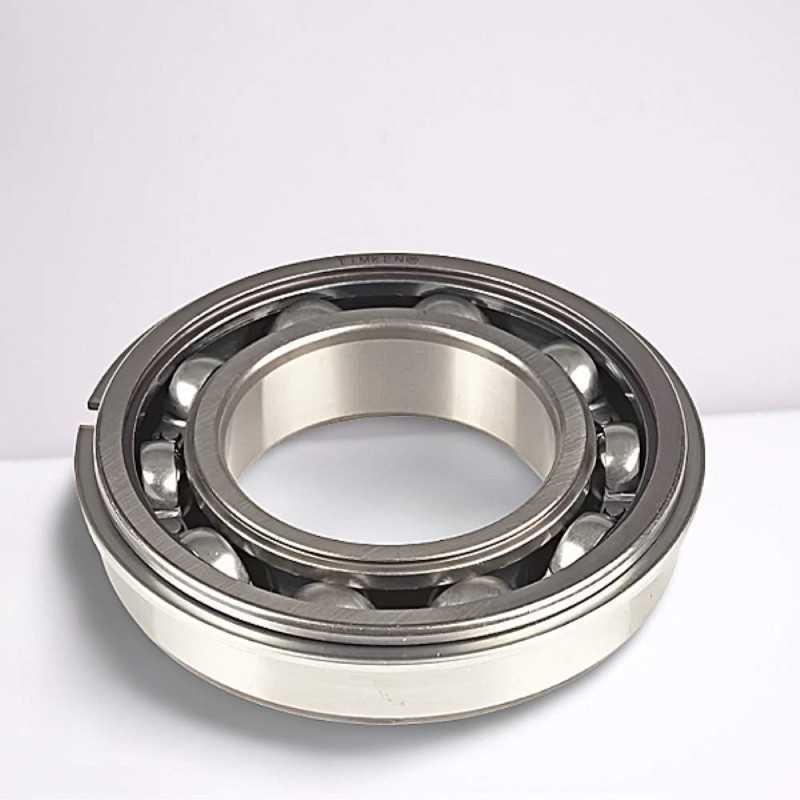

6007 NR RICH Single Row Deep Groove Ball Bearing with Snap Ring Groove - 35 x 62 x 14 mm, Open Type, Normal Clearance
The 6007 NR RICH is an open-type single row deep groove ball bearing designed for applications requiring smooth and efficient rotation, and features a groove on the outer ring for a snap ring. It has key dimensions of 35 mm inner diameter, 62 mm outer diameter, and a width of 14 mm. This bearing weighs approximately 0.161 kg. It features a steel cage and has CN (normal) clearance. It is made in China and does not have any seals. The NR designation indicates a groove on the outer ring, typically used with a snap ring for axial location of the bearing. Single row deep groove ball bearings can accommodate radial and axial loads in both directions.
Key Specifications:
- Type:** Single Row Deep Groove Ball Bearing with Snap Ring Groove
- Model:** 6007 NR RICH
- Inner Diameter (d): 35 mm
- Outer Diameter (D): 62 mm
- Width (B): 14 mm
- Cage Material:** Steel
- Clearance:** CN (Normal)
- Sealing:** None (Open)
- Groove on Outer Ring:** Yes, with a snap ring
- Weight:** 0.15 kg
- Country of Origin:** China
Key Features:
- Deep Groove Geometry:** Suitable for moderate radial and axial loads in both directions.
- Snap Ring Groove (NR): Allows for easy axial location and mounting.
- Steel Cage:** Offers high strength and durability.
- Open Type (No Seals): Allows for relubrication and high-speed operation.
- Normal Clearance (CN): Standard radial internal clearance.
- Manufacturing Origin:** Made in China.
Data sheet
Inner Diameter
35
Outer Diameter
62
Width
14
Weight
0,15
Ball Rows
Single Row
Cage
Steel Cage
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
