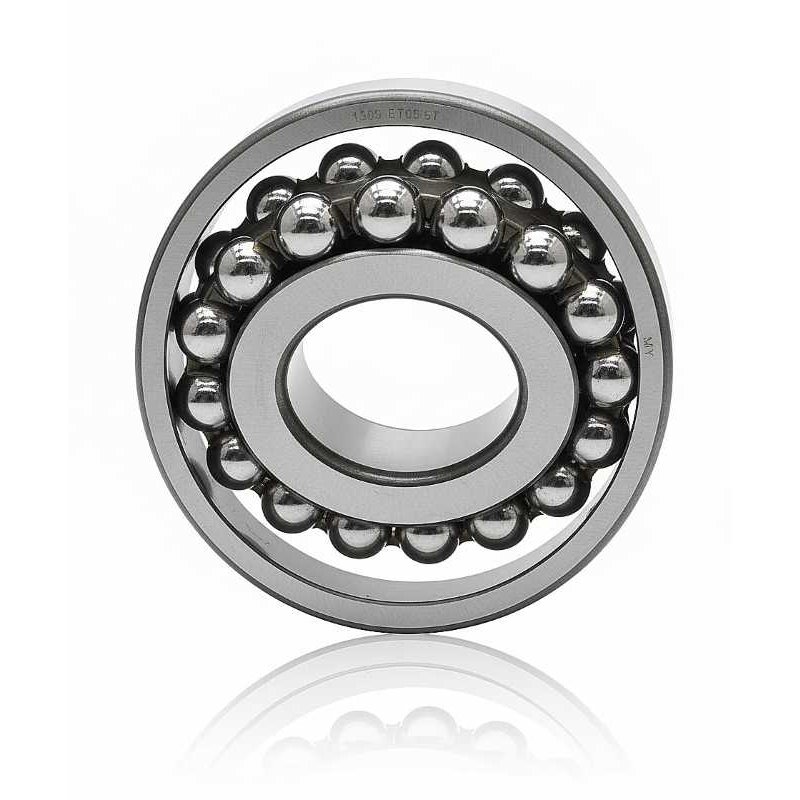

1314 C3 RICH 70x150x35 1314-C3 RICH
zoom_out_map
1314 C3 RICH 70x150x35 1314-C3 RICH

1314 C3 RICH 70x150x35

Type: Self‑Aligning Ball Bearing
Model: RICH 1314 C3
Cage: Steel
Clearance: C3
Sealing: Open Type
Weight: 3.039 kg
Origin: China
Brand: RICH
RICH
1314-C3
€11.18
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

1314 C3 RICH | Self‑Aligning Ball Bearing – 70 × 150 × 35

Technical Specifications:

  • Brand: RICH
  • Type: Self‑Aligning Ball Bearing
  • Inner Diameter (d): 70 mm
  • Outer Diameter (D): 150 mm
  • Width (B): 35 mm
  • Cage: Steel
  • Clearance: C3 (Greater than Normal)
  • Sealing: Open Type (No Seals)
  • Weight: 3.039 kg
  • Country of Origin: China

Performance Characteristics:

  • Spherical Raceway: The outer ring raceway is spherical, allowing compensation for angular misalignment between shaft and housing.
  • Dual‑Row Configuration: The two ball rows distribute loads uniformly and maintain stable rotation under radial and moderate axial loads.
  • C3 Clearance: Increased internal clearance supports higher operating temperatures and speeds.
  • Steel Cage: The pressed steel cage provides structural rigidity and consistent ball guidance.
  • Open Design: The absence of sealing elements allows external lubrication and direct inspection of the rolling elements.

The 1314 C3 RICH bearing is a self‑aligning ball bearing with a dual‑row configuration and spherical outer raceway. The C3 clearance supports applications with increased thermal expansion, while the steel cage ensures stable ball guidance.

Transparency Note: This bearing is manufactured under the RICH brand. All technical data refer exclusively to the RICH 1314 C3 model and do not imply association with other manufacturers.

Data sheet

Inner Diameter
70
Outer Diameter
150
Width
35
Weight
3,03
Ball Rows
Double Row
Clearance
C3 (Greater than Normal)
Category
Self‑Aligning Ball Bearing
