81228 M RICH 140x200x46

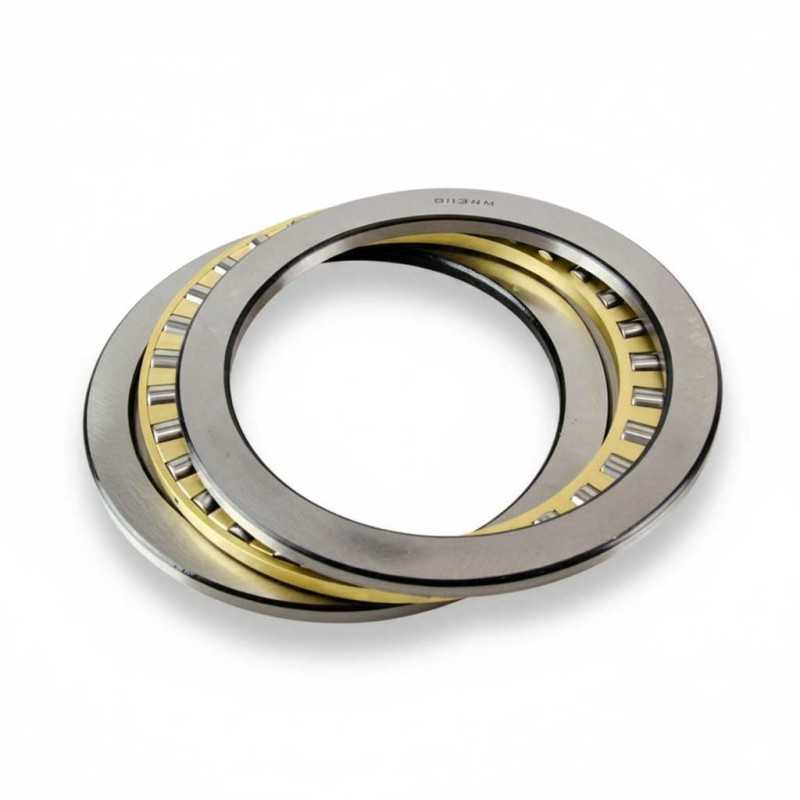

81228.M RICH – Axial Cylindrical Roller Bearing – 140 x 200 x 46 mm

Technical Specifications:

• Type: Axial cylindrical roller bearing
• Brand: RICH
• Model Designation: 81228.M
• Inner Diameter (d): 140 mm
• Outer Diameter (D): 200 mm
• Total Height (H): 46 mm
• Cage Material: Machined brass (Rolling element guided)
• Weight: 4.861 kg
• Country of Origin: China

Performance Characteristics:

• Structural Configuration: Complete axial thrust bearing assembly consisting of a cylindrical roller cage set, a shaft washer, and a housing washer.
• Cage Specification: Features a solid machined brass cage (M) guided by the rolling elements, providing enhanced structural integrity and thermal stability.
• Load Management: Engineered to accommodate very high axial loads in a single direction while maintaining high mechanical stiffness and minimal deflection.
• Mechanical Interface: 140 x 200 x 46 mm dimensional format produced to standardized industrial tolerances for heavy-duty rotary equipment.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
