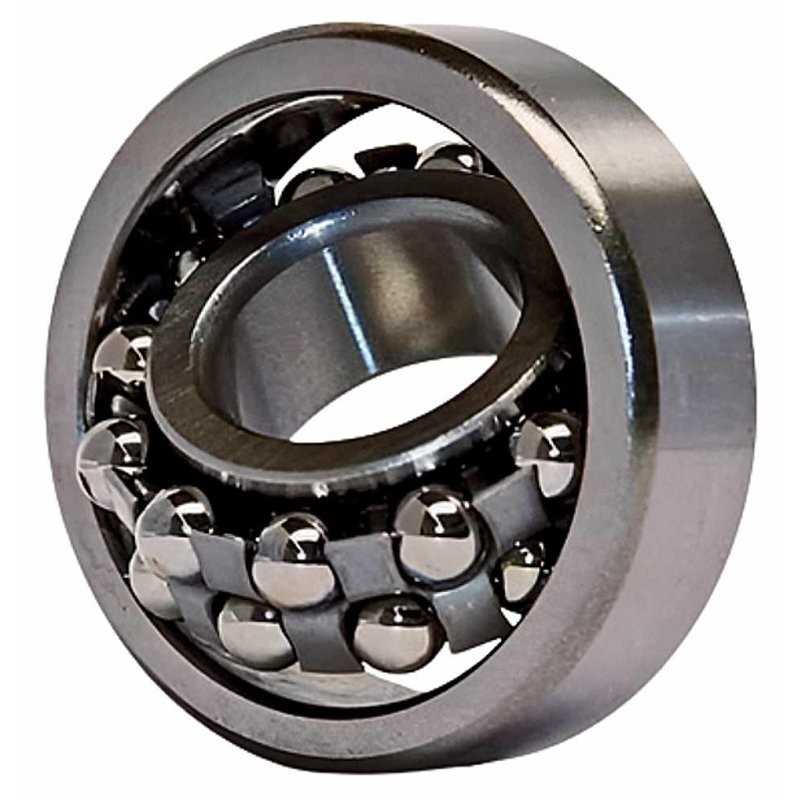

2313 K C3 RICH 65x140x48 2313KC3 RICH
zoom_out_map
2313 K C3 RICH 65x140x48 2313KC3 RICH

2313 K C3 RICH 65x140x48

Type: Self-Aligning Ball Bearing
Model: 2313-K-C3 RICH
Dimensions: 65 x 140 x 48 mm
Bore: Tapered 1:12 (K)
Clearance: C3
Brand: RICH
Origin: China
RICH
2313KC3
€21.56
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

2313-K-C3 RICH Heavy-Series Self-Aligning Ball Bearing with Tapered Bore - 65 x 140 x 48 mm

Technical Specifications:

  • Catalog Code: 2313-K-C3 RICH
  • Brand: RICH
  • Type: Self-aligning ball bearing (Heavy-duty double row)
  • Bore Diameter (d): 65 mm
  • Outer Diameter (D): 140 mm
  • Width (B): 48 mm
  • Bore Type: Tapered 1:12 (Suffix K)
  • Internal Clearance: C3 (Greater than Normal)
  • Cage Material: Steel
  • Sealing: Open (None)
  • Weight: 3.151 kg
  • Country of Origin: China

Key Performance Advantages:

  • High Load 2300 Series: This heavy-series design provides a significantly higher radial load rating than the 2200 series, making it suitable for high-stress industrial machinery and heavy power transmission.
  • Automatic Misalignment Correction: The spherical outer raceway allows the bearing to self-align, compensating for shaft deflections and mounting inaccuracies that would cause failure in standard deep groove bearings.
  • Tapered Bore (1:12): The "K" tapered bore facilitates easy mounting and dismounting on cylindrical shafts using an adapter sleeve, ensuring a secure interference fit even with frequent vibrations.
  • Thermal Expansion Management: Engineered with C3 internal clearance, this bearing is optimized for high-speed or high-temperature environments, preventing internal stress when the shaft expands during operation.
  • Robust Steel Cage: The pressed steel cage provides precise ball guidance and withstands demanding operational cycles in agricultural, mining, and industrial sectors.

Technical Note: To install this 65 mm tapered bore bearing on a standard 60 mm straight shaft, an H 2313 adapter sleeve is required. Please check your assembly setup for compatibility.

Transparency Note: This product is manufactured under the RICH brand. The code 2313-K-C3 is used for identification purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
65
Outer Diameter
140
Width
48
Clearance
C3 (Greater than Normal)
Category
Self-Aligning Ball Bearing
