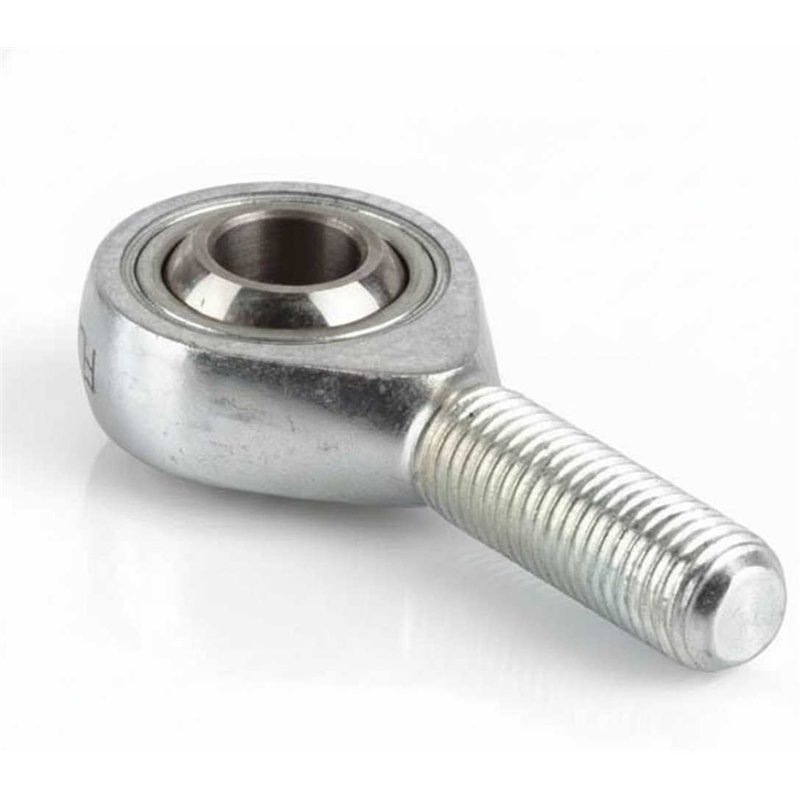

RGASW 6 RICH – Rod End | Thread Size: M6

RGASW 6 RICH – Rod End – 6 x 20 x 36 mm

Technical Specifications:

• Type: Rod end with male thread (Maintenance-free)
• Brand: RICH
• Model Designation: RGASW 6
• Inner Diameter (d): 6 mm
• Outer Diameter (A): 20 mm
• Height to Axis (F): 36 mm
• Thread Size: M6 (Standard pitch)
• Thread Length (GL): 21 mm
• Outer Ring Width (C): 6.75 mm
• Friction Pair: Steel/PTFE
• Housing Material: Free-cutting steel (9SMnPb28K / 12L13)
• Dimensional Series: K
• Weight: 0.02 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Male-threaded rod end housing precision-machined from free-cutting steel with a protective zinc-plated surface finish.
• Maintenance Profile: Maintenance-free configuration utilizing a high-performance PTFE liner designed for continuous operation under dynamic loads.
• Friction Interface: Self-lubricating steel/PTFE sliding contact surface engineered to ensure smooth articulated motion without external lubrication.
• Dimensional Format: Technical profile compliant with dimensional series K standards for integration into compact mechanical linkage systems.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
