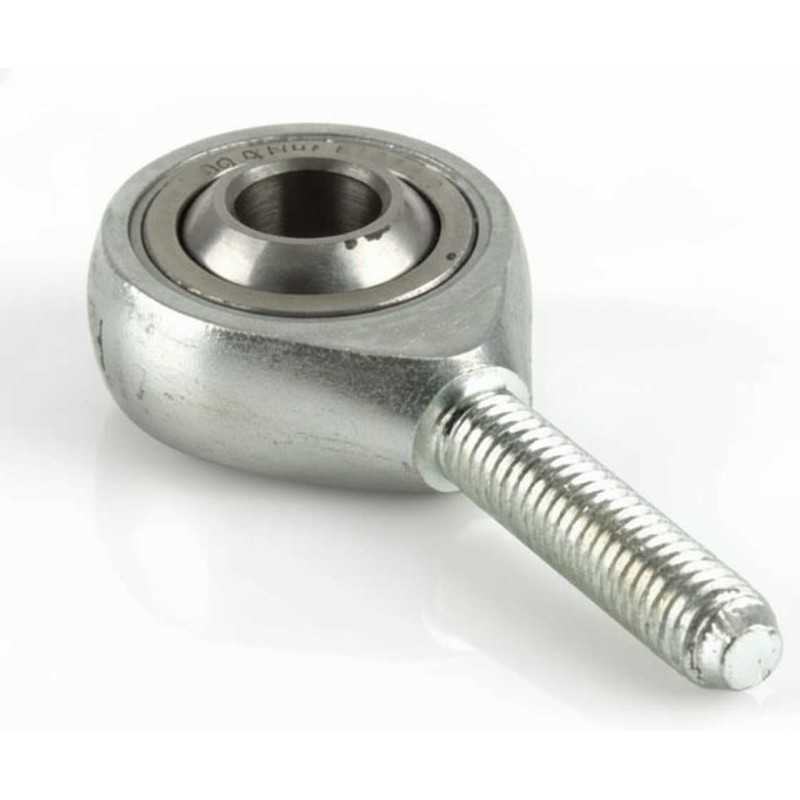

RGASW 8 M6 RICH – Rod End | Thread Size: M6

RGASW 8 M6 RICH – Rod End – 8 x 24 x 42 mm

Technical Specifications:

• Type: Rod end with male thread (PTFE liner configuration)
• Brand: RICH
• Model Designation: RGASW 8 M6
• Inner Diameter (d): 8 mm
• Outer Diameter (A): 24 mm
• Height to Axis (F): 42 mm
• Thread Size: M6
• Thread Length (GL): 25 mm
• Outer Ring Width (C): 9 mm
• Friction Pair: Steel/PTFE
• Housing Material: Free-cutting steel (9SMnPb28K / 12L13)
• Inner Ring Material: Bearing steel (100Cr6 / AISI 52100)
• Dimensional Series: K
• Weight: 0.033 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Male-threaded rod end housing manufactured from free-cutting steel with a protective zinc-plated surface finish.
• Sliding Configuration: Internal assembly featuring a PTFE liner typically used in maintenance-free construction types.
• Material Composition: Inner ring composed of high-carbon chrome bearing steel (100Cr6) for structural rigidity within the spherical interface.
• Friction Interface: Steel on PTFE sliding contact surface designed for articulation under dynamic load conditions.
• Dimensional Format: Technical profile compliant with dimensional series K standards with an M6 male thread.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
