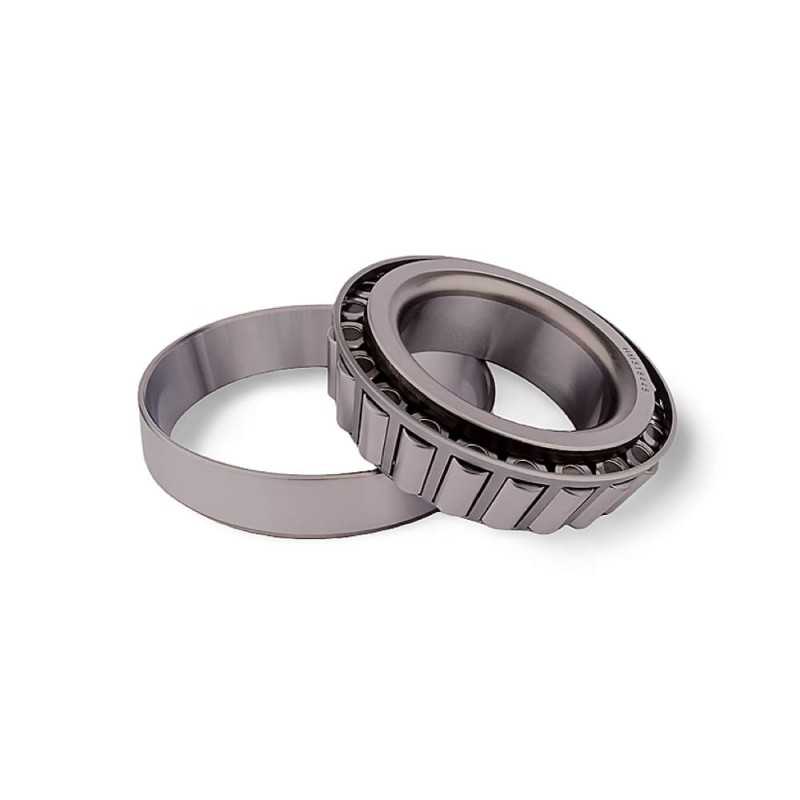

18690/18620 RICH 46,038x79,375x17,462 18690/18620 RICH
zoom_out_map
18690/18620 RICH 46,038x79,375x17,462 18690/18620 RICH

18690/18620 RICH 46,038x79,375x17,462

Type: Single-Row Tapered Roller Bearing
Model: 18690/18620 RICH
Dimensions: 46.038 x 79.375 x 17.462 mm
Brand: RICH
Origin: China
RICH
18690/18620
€5.55
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

18690/18620 RICH – Single Row Tapered Roller Bearing – 46.038 × 79.375 × 17.462 mm

OE References:

  • BEDFORD: 8845472
  • BRITISH LEYLAND: 529683
  • DAF: 0494535
  • EATON: 594508
  • FIAT: 9980735
  • GM: 457112, 8845472
  • IHC: 377112C91
  • IVECO: 1905018, 9980735
  • JOHN DEERE: GRN050, GRN183
  • ROVER: AMK4826, C19066, GHB140, RTC3414
  • VAUXHALL: 8845472

Technical Specifications:

  • Type: Single‑row tapered roller bearing
  • Brand: RICH
  • Model Designation: 18690/18620
  • Interchange References: VKHB2239, 18690‑18620
  • Inner Diameter (d): 46.038 mm
  • Outer Diameter (D): 79.375 mm
  • Total Width (T): 17.462 mm
  • Cone Width (B): 17.462 mm
  • Cup Width (C): 13.495 mm
  • Weight: 0.35 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Single‑row tapered roller assembly with separable cone and cup.
  • Rolling Element Geometry: Tapered rollers arranged for radial and axial load distribution in one direction.
  • Raceway Structure: Tapered inner and outer raceway profile.
  • Component Format: Cup and cone supplied as a matched set.
  • Dimensional Format: 46.038 × 79.375 × 17.462 mm profile.

Transparency Note:

This bearing is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
46,038
Outer Diameter
79,735
Width
17,462
Weight
0,331
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Tapered Roller Bearing
