RGAS 22 RICH – Rod End | Thread Size: M22 GAS22 RICH

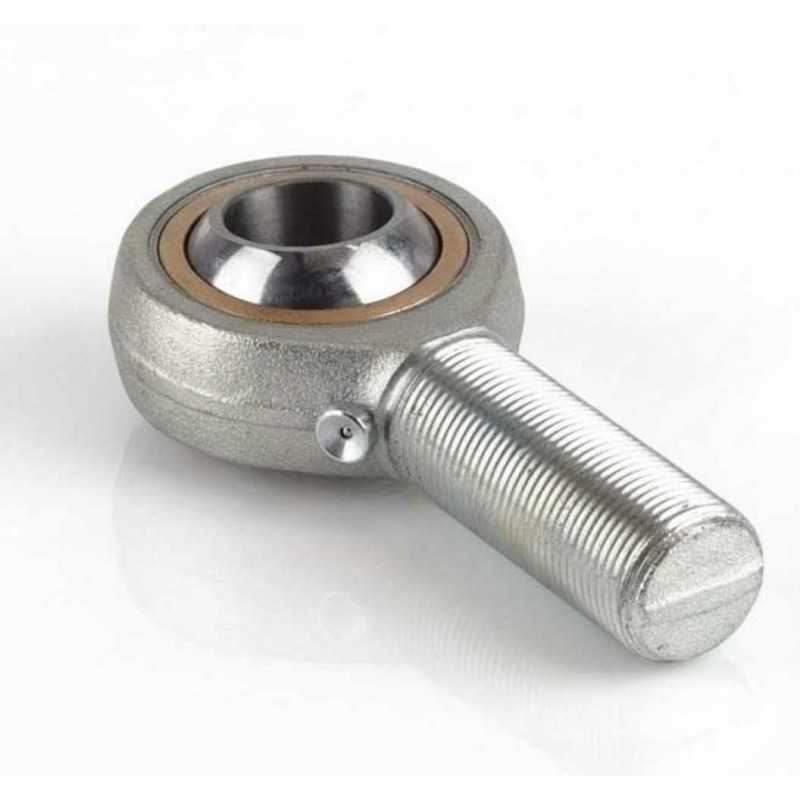

RGAS 22 RICH – Rod End | Thread Size: M22

Type: Rod End with Male Thread (Regreasable)
Model: RGAS 10 BO M10 RICH
Dimensions: 10 mm Bore x 48 mm Height
Material: Zinc Plated Steel/Bronze
Brand: RICH
Origin: China
RICH
GAS22
€22.12
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

RGAS 22 RICH – Rod End – 22 × 54 × 84 mm

Technical Specifications:

  • Type: Rod end with male thread (regreasable configuration)
  • Brand: RICH
  • Model Designation: RGAS 22
  • Inner Diameter (d): 22 mm
  • Outer Diameter (A): 54 mm
  • Height to Axis (F): 84 mm
  • Thread Size: M22
  • Thread Length (GL): 51 mm
  • Outer Ring Width (C): 20 mm
  • Friction Pair: Steel/Bronze
  • Housing Material: Carbon construction steel (C22 / AISI 1020)
  • Dimensional Series: K
  • Weight: 0.47 kg
  • Country of Origin: China

Construction Features:

  • Housing: Male-threaded rod end body manufactured from AISI 1020 carbon construction steel with zinc-plated surface treatment.
  • Lubrication Feature: Housing equipped with an integrated grease nipple for periodic re-lubrication of the internal spherical interface.
  • Sliding Configuration: Internal assembly incorporating a steel-on-bronze friction pair.
  • Dimensional Format: 22 × 54 × 84 mm configuration consistent with standardized geometry for series K rod ends.

Transparency Note: This rod end is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
22
Category
Rod End
