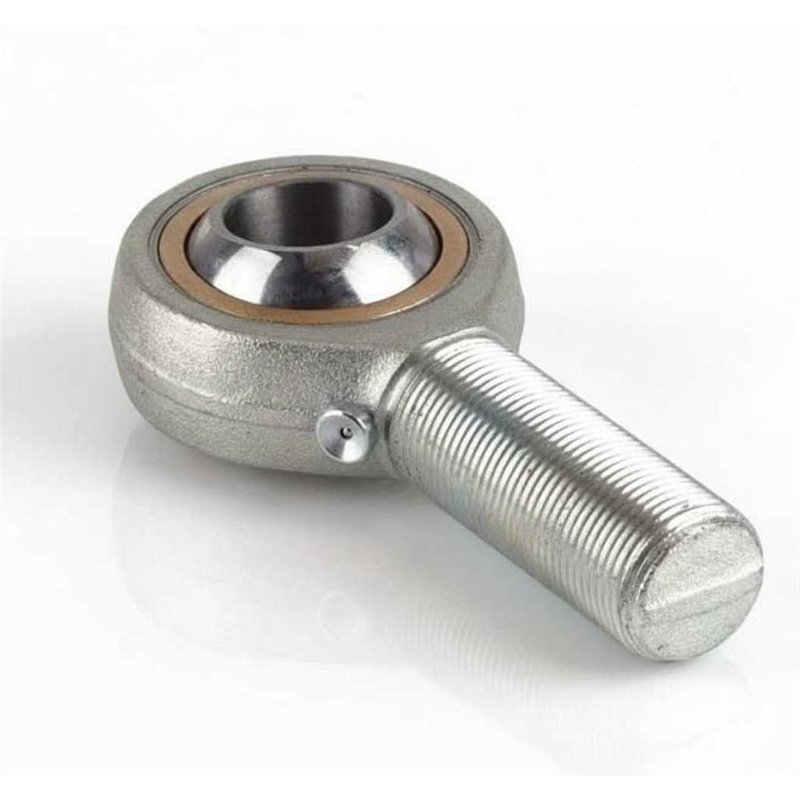

RGAS 10 RICH – Rod End | Thread Size: M10 GAS10 RICH

RGAS 10 RICH – Rod End | Thread Size: M10

Type: Rod End with Male Thread (Regreasable)
Model: RGAS 10 RICH
Dimensions: 10 mm Bore x 48 mm Height
Material: Zinc Plated Steel/Bronze
Brand: RICH
Origin: China
RICH
GAS10
€7.72
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

RGAS 10 RICH – Rod End – 10 × 28 × 48 mm

Technical Specifications:

  • Type: Rod end with male thread (regreasable configuration)
  • Brand: RICH
  • Model Designation: RGAS 10
  • Inner Diameter (d): 10 mm
  • Outer Diameter (A): 28 mm
  • Height to Axis (F): 48 mm
  • Thread Size: M10
  • Thread Length (GL): 28 mm
  • Outer Ring Width (C): 10.5 mm
  • Friction Pair: Steel/Bronze
  • Housing Material: Free-cutting steel (9SMnPb28K / 12L13)
  • Dimensional Series: K
  • Weight: 0.066 kg
  • Country of Origin: China

Construction Features:

  • Housing: Free-cutting steel body with male-threaded shank and zinc-plated surface treatment.
  • Lubrication Feature: Integrated grease nipple positioned on the housing for periodic re-lubrication of the internal contact surfaces.
  • Sliding Configuration: Steel-on-bronze friction pair arranged within the spherical inner ring for articulated movement.
  • Dimensional Format: 10 × 28 × 48 mm configuration consistent with standardized geometry for series K rod ends.

Transparency Note: This rod end is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
10
Category
Rod End
