RGXSW 16.32 SS RICH 16x32x21 | Stainless Steel

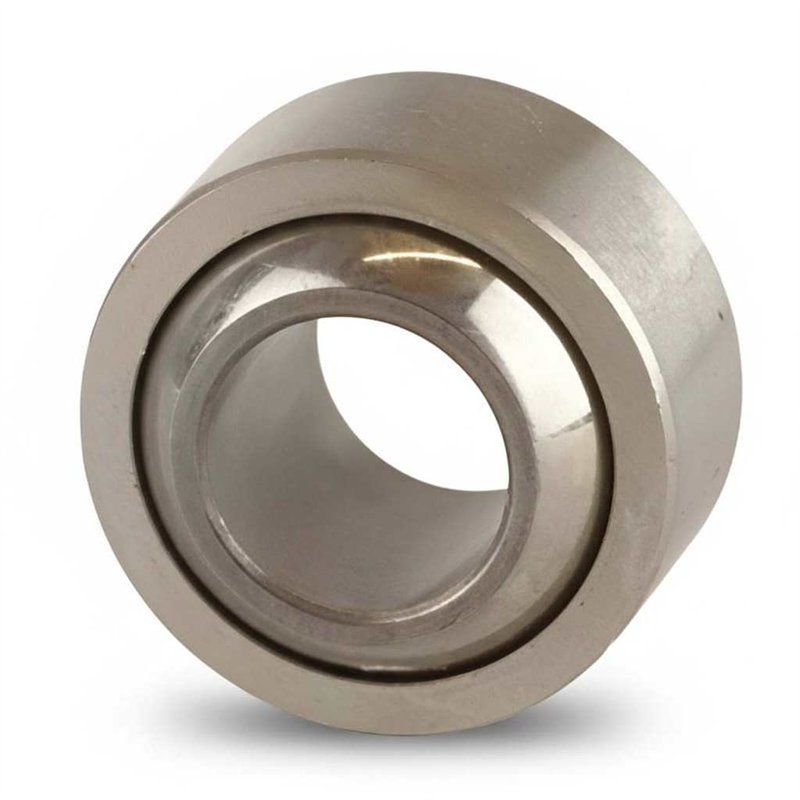

RGXSW 16.32 SS RICH – Stainless Steel Spherical Plain Bearing – 16 × 32 × 21 mm

Technical Specifications:

• Type: Radial spherical plain bearing
• Brand: RICH
• Model Designation: RGXSW 16.32 SS
• Inner Diameter (d): 16 mm
• Outer Diameter (D): 32 mm
• Inner Ring Width (B): 21 mm
• Outer Ring Width (C): 15 mm
• Sphere Diameter (dk): 28.57 mm
• Friction Pair: Stainless steel / PTFE composite
• Inner Ring Material: Martensitic stainless steel (X46Cr13 / AISI 420C)
• Dimensional Series: K
• Weight: 0.077 kg
• Country of Origin: China

Construction Features:

• Inner Ring: Machined martensitic stainless steel structure.
• Sliding Interface: Stainless steel on PTFE composite friction pair.
• Ring Geometry: Spherical inner ring with corresponding outer ring seat.
• Dimensional Format: 16 × 32 × 21 mm configuration aligned with series K.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.
