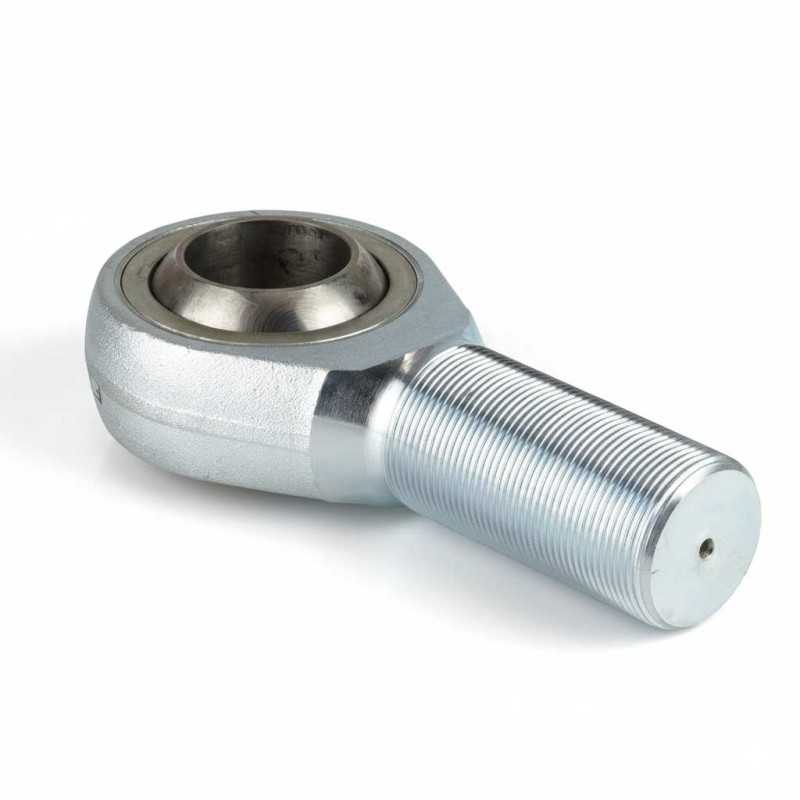

RGA 16 RICH – Rod End GA16 RICH
zoom_out_map
RGA 16 RICH – Rod End GA16 RICH

RGA 16 RICH – Rod End

Type: Rod End with Male Thread (Regreasable)
Model: RGA 16 RICH
Dimensions: 16 mm Bore x 66 mm Height
Material: Zinc Plated Steel/Brass
Brand: RICH
Origin: China
RICH
GA16
€14.88
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

RGA 16 RICH – Rod End – 16 x 42 x 66 mm

Technical Specifications:

  • Type: Rod end with male thread (Regreasable configuration)
  • Brand: RICH
  • Model Designation: RGA 16
  • Inner Diameter (d): 16 mm
  • Outer Diameter (A): 42 mm
  • Height to Axis (F): 66 mm
  • Thread Size: M16
  • Thread Length (GL): 40 mm
  • Outer Ring Width (C): 15 mm
  • Friction Pair: Steel/Brass
  • Housing Material: Carbon construction steel (C22 / AISI 1020)
  • Dimensional Series: K
  • Weight: 0.207 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Male-threaded rod end housing manufactured from AISI 1020 carbon construction steel with a zinc-plated surface finish.
  • Lubrication Feature: Housing assembly equipped with an integrated grease nipple for re-lubrication of the internal contact surfaces.
  • Sliding Configuration: Internal components utilizing a steel on brass friction pair arranged for articulated movement.
  • Dimensional Format: Technical profile compliant with dimensional series K standards.

Transparency Note:

Transparency Note: This rod end is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
16
