RGLRSW 22 RICH 22x50x28 | Stainless Steel

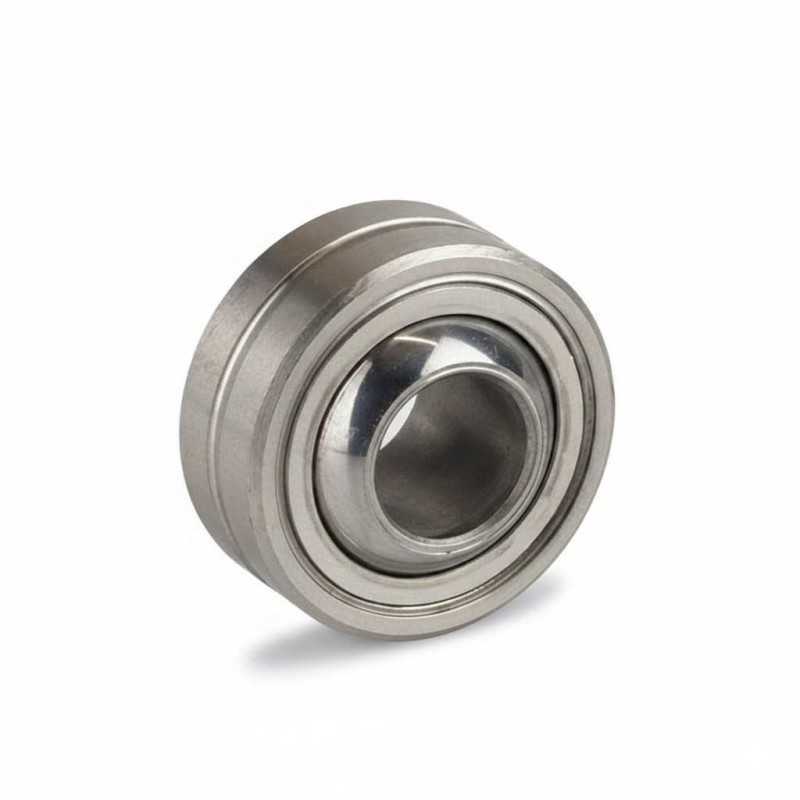

RGLRSW 22 RICH – Stainless Steel Spherical Plain Bearing – 22 x 50 x 28 mm

Technical Specifications:

• Type: Radial spherical plain bearing (Maintenance-free)
• Brand: RICH
• Model Designation: RGLRSW 22
• Inner Diameter (d): 22 mm
• Outer Diameter (D): 50 mm
• Inner Ring Width (B): 28 mm
• Outer Ring Width (C): 20 mm
• Sphere Diameter (dk): 38.1 mm
• Friction Pair: Chrome steel / PTFE
• Inner Ring Material: Bearing steel (100Cr6 / AISI 52100)
• Outer Ring Material: Stainless Steel
• Dimensional Series: K
• Weight: 0.263 kg
• Country of Origin: China

Performance Characteristics:

• Material Configuration: Hybrid construction featuring a high-precision chrome steel inner ring paired with a stainless steel outer ring for enhanced durability in specialized environments.
• Sliding Configuration: Maintenance-free design utilizing a chrome steel on PTFE friction pair, engineered to eliminate the requirement for periodic lubrication.
• Operational Capability: Specifically designed to maintain structural reliability under high dynamic pressure and tension loads within corrosive or demanding settings.
• Dimensional Format: Technical profile compliant with dimensional series K standards, suitable for industrial articulation and mechanical pivot systems.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
