RGXSW 12.26 SS RICH 12x26x16 | Stainless Steel

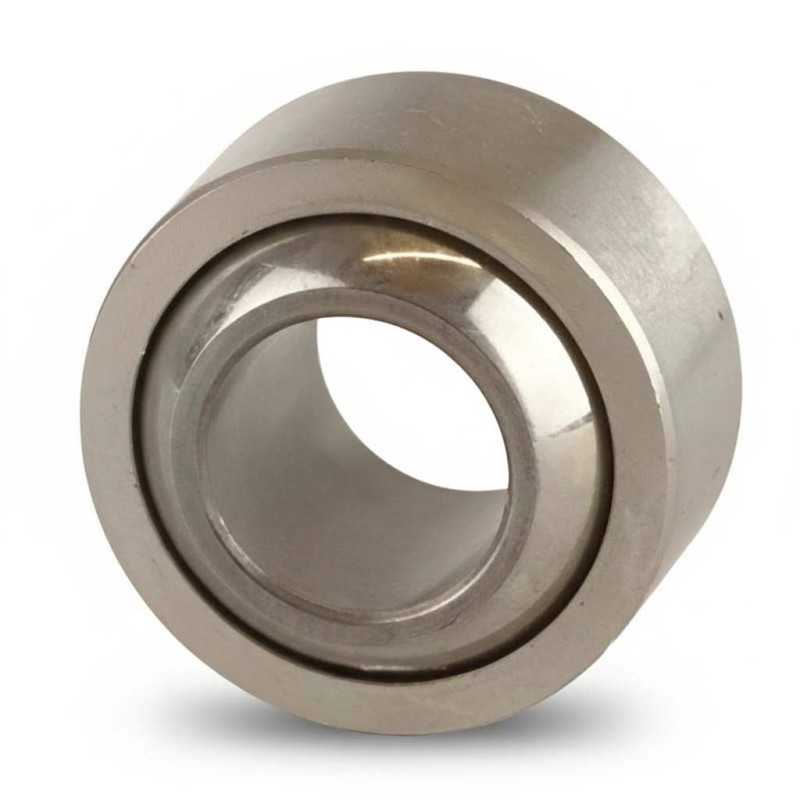

RGXSW 12.26 SS RICH – Stainless Steel Spherical Plain Bearing – 12 x 26 x 16 mm

Technical Specifications:

• Type: Radial spherical plain bearing (Maintenance-free)
• Brand: RICH
• Model Designation: RGXSW 12.26 SS
• Inner Diameter (d): 12 mm
• Outer Diameter (D): 26 mm
• Inner Ring Width (B): 16 mm
• Outer Ring Width (C): 12 mm
• Sphere Diameter (dk): 22.22 mm
• Friction Pair: Stainless steel / PTFE composite
• Inner Ring Material: Martensitic stainless steel (X46Cr13 / AISI 420C)
• Dimensional Series: K
• Weight: 0.045 kg
• Country of Origin: China

Performance Characteristics:

• Material Integrity: Constructed with a martensitic stainless steel inner ring, providing excellent resistance to oxidation and harsh chemical environments.
• Sliding Configuration: Maintenance-free operation ensured by a stainless steel on PTFE composite friction pair, eliminating the need for periodic lubrication.
• Operational Capability: Specifically engineered to handle high pressure and dynamic loads while maintaining structural stability in corrosive settings.
• Dimensional Format: Technical profile compliant with dimensional series K standards for precision industrial articulation and mechanical pivots.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
