RGASW 10 RICH | Thread Size: M10

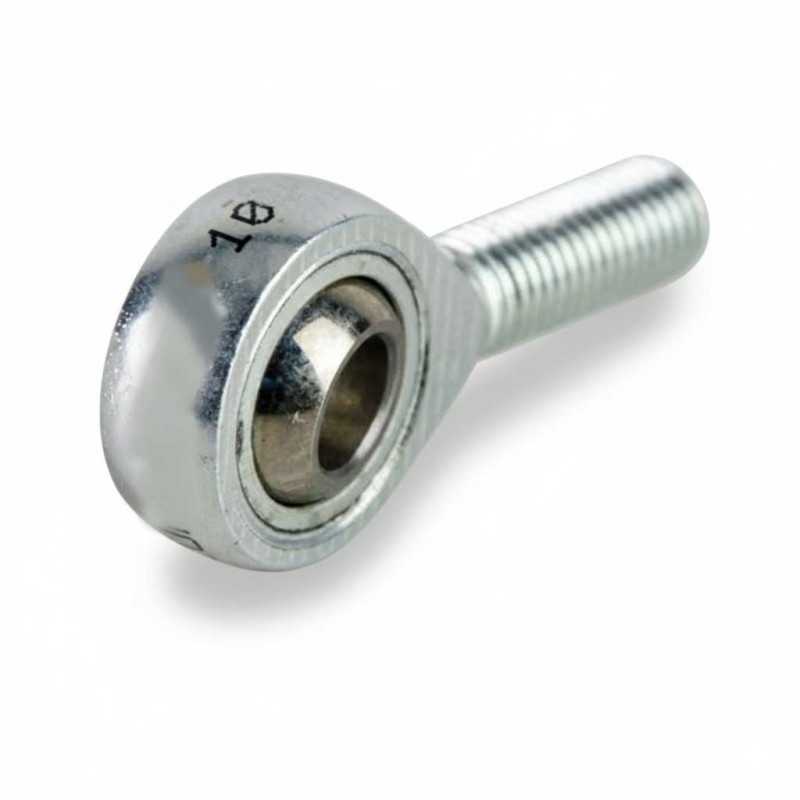

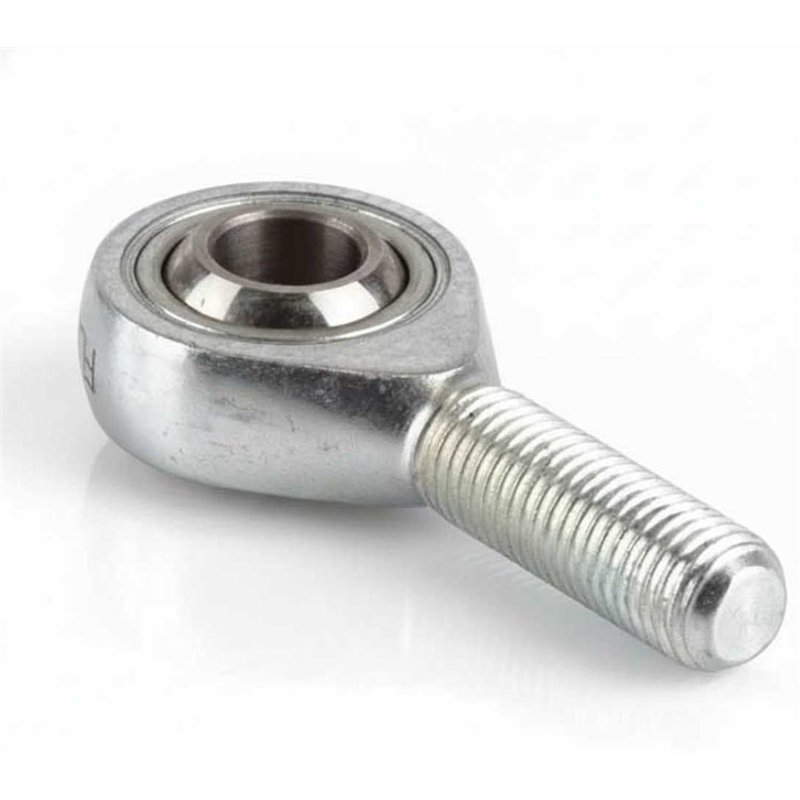

RGASW 10 RICH – Rod End – 10 x 28 x 48 mm

Technical Specifications:

• Type: Rod end with male thread (Maintenance-free)
• Brand: RICH
• Model Designation: RGASW 10
• Inner Diameter (d): 10 mm
• Outer Diameter (A): 28 mm
• Height to Axis (F): 48 mm
• Thread Size: M10 (Standard pitch)
• Thread Length (GL): 28 mm
• Outer Ring Width (C): 10.5 mm
• Friction Pair: Steel/PTFE
• Housing Material: Free-cutting steel (9SMnPb28K / 12L13)
• Dimensional Series: K
• Weight: 0.063 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Male-threaded rod end housing manufactured from high-grade free-cutting steel with a zinc-plated surface finish for corrosion protection.
• Maintenance Profile: Self-lubricating configuration utilizing a high-performance PTFE liner, engineered for maintenance-free operation under dynamic loading.
• Friction Interface: Steel on PTFE sliding contact surface designed to ensure smooth articulated motion and high durability.
• Dimensional Format: Technical profile compliant with dimensional series K standards for reliable integration into mechanical linkage systems.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
