RGXSW 14 RICH 14x28x19

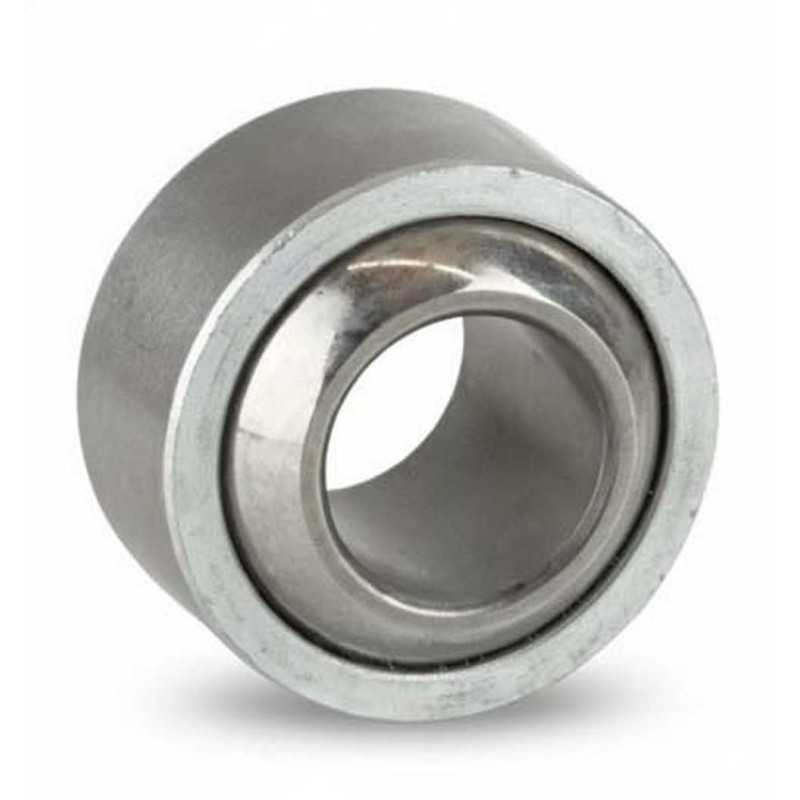

RGXSW 14 RICH – Spherical Plain Bearing – 14 × 28 × 19 mm

Technical Specifications:

• Type: Radial spherical plain bearing
• Brand: RICH
• Model Designation: RGXSW 14
• Inner Diameter (d): 14 mm
• Outer Diameter (D): 28 mm
• Inner Ring Width (B): 19 mm
• Outer Ring Width (C): 13.5 mm
• Sphere Diameter (dk): 25.4 mm
• Friction Pair: Steel / PTFE
• Inner Ring Material: Bearing steel (100Cr6 / AISI 52100)
• Dimensional Series: K
• Weight: 0.053 kg
• Country of Origin: China

Construction Features:

• Inner Ring: Machined bearing steel structure.
• Sliding Interface: Steel on PTFE friction pair.
• Ring Geometry: Spherical inner ring with corresponding outer ring seat.
• Dimensional Format: 14 × 28 × 19 mm configuration aligned with series K.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.
