SER206-19G RICH 30,163x62x38,1 SER206-19G RICH
zoom_out_map
SER206-19G RICH 30,163x62x38,1 SER206-19G RICH

SER206-19G RICH 30,163x62x38,1

Type: Ball Bearing with Flat Outer Ring (Insert Bearing)
Model: SER206-19G RICH
Dimensions: 30.163 x 62 x 38.1 mm
OE Reference: DODGE INS-CC-103
Brand: RICH
Origin: China
RICH
SER206-19G
€6.88
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

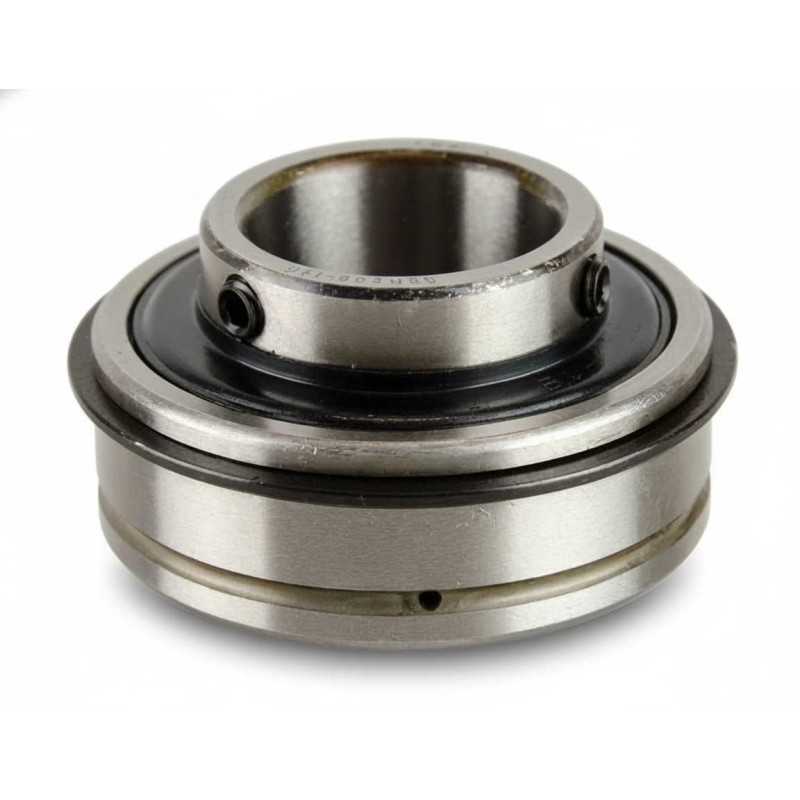

SER206-19G RICH – Ball Bearing with Cylindrical Outer Ring – 30.163 × 62 × 38.1 mm

Technical Specifications:

  • Type: Ball bearing with cylindrical (flat) outer ring
  • Brand: RICH
  • Model Designation: SER206-19G
  • Inner Diameter (d): 30.163 mm (1-3/16 inch)
  • Outer Diameter (D): 62 mm
  • Inner Ring Width (B): 38.1 mm
  • Outer Ring Width (C): 22.22 mm
  • Internal Clearance: CN (Normal clearance)
  • Sealing: Double-sided lip seal with protective plate
  • Outer Ring Profile: Cylindrical (Non-spherical)
  • Lubrication Feature: Groove on outer ring with lubrication holes (G)
  • OE Reference: DODGE INS-CC-103 (C=16mm reference)
  • Weight: 0.352 kg
  • Country of Origin: China

Construction Features:

  • Outer Ring: Cylindrical flat profile with integrated lubrication groove.
  • Inner Ring: Extended inner ring width (38.1 mm) for shaft support.
  • Sealing System: Multi-component setup featuring lip seals reinforced by metal plates on both sides.
  • Dimensional Format: 30.163 × 62 × 38.1 mm configuration for insert bearing housings.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
30,163
Outer Diameter
62
Width
38,1
