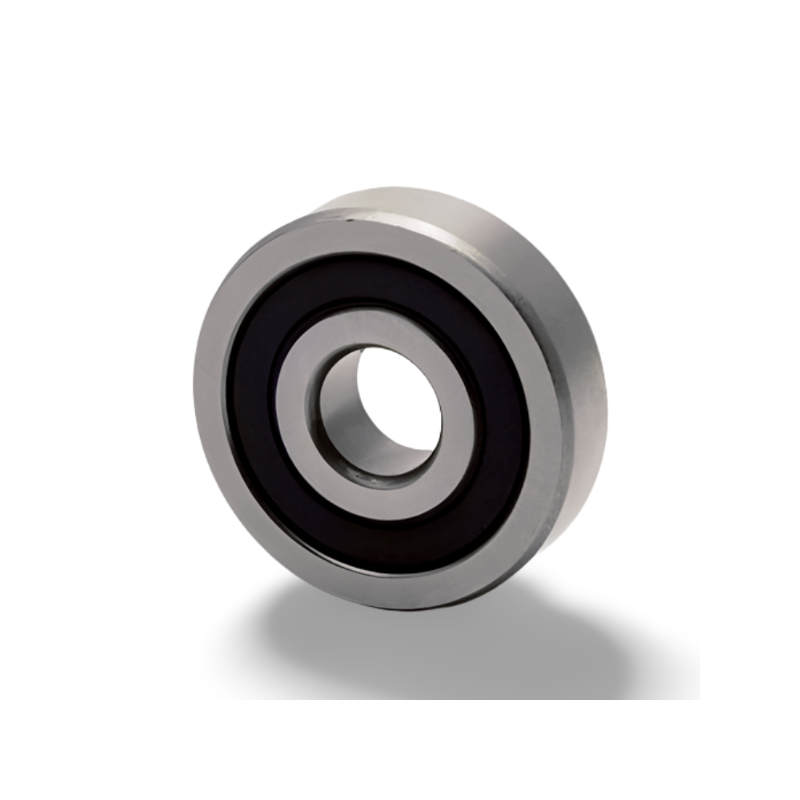

LR604-2RS RICH Track Roller – 4 x 13 x 4 mm with Rounded Outer Ring
The LR604-2RS RICH is a miniature track roller bearing expertly designed for linear motion systems and compact cam follower applications. Its key feature, a rounded outer ring, effectively reduces edge loading and compensates for minor misalignments, leading to improved performance on various track surfaces. Equipped with double-sided rubber contact seals (2RS), it provides reliable protection against fine dust ingress and ensures excellent lubricant retention for extended life. This compact bearing has a 4 mm inner diameter (ID), a 13 mm outer diameter (OD), a 4 mm width, and an ultra-lightweight design of only 0.005 kg. Manufactured with precision in China.
Key Specifications:
- Type: Track Roller Bearing
- Dimensions: 4 mm (ID) x 13 mm (OD) x 4 mm (Width)
- Weight: 0.005 kg
- Sealing: Double Rubber Contact Seals (2RS)
- Outer Ring Profile: Rounded
- Country of Origin: China
Key Advantages:
- Minimized Edge Loading: The rounded outer ring design significantly reduces stress on the mating track, enhancing operational lifespan.
- Misalignment Compensation: Effortlessly adapts to slight misalignments, ensuring smooth and consistent performance.
- Superior Contamination Protection: The 2RS double rubber seals effectively prevent the ingress of fine dust and other harmful contaminants.
- Optimal Lubricant Retention: The seals also ensure that lubricant stays within the bearing, reducing wear and maintenance.
- Ultra-Compact Design: Ideal for applications with extremely limited space and low load requirements.
- Lightweight Construction: Perfect for delicate or miniature assemblies where minimizing weight is crucial.
- Smooth, Low-Friction Operation: Engineered for precision systems requiring minimal resistance.
Data sheet
Inner Diameter
4
Outer Diameter
13
Width
4
Weight
0,05
Sealing
Lip Seal On Both Sides
