SUCPPL206N RICH

Type: Thermoplastic Pillow Block with Stainless Steel Bearing
Model: SUCPPL206N RICH (Black)
Shaft Diameter: 30 mm
Features: Corrosion Resistant with Protective Cover
Brand: RICH
Origin: China
RICH
SUCPPL206N
€23.89
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

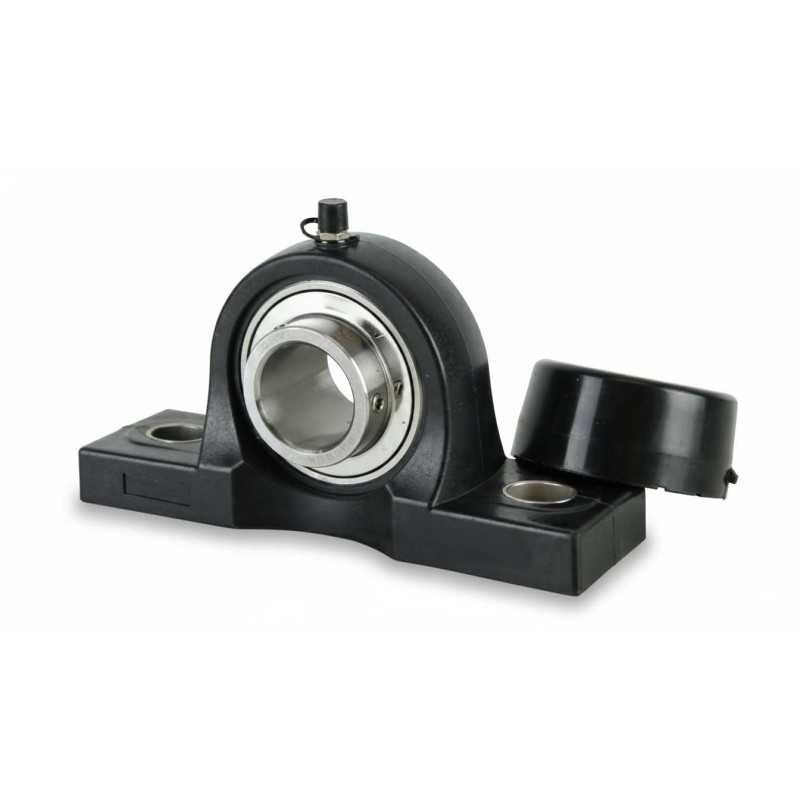

SUCPPL206N RICH – Thermoplastic Pillow Block with Stainless Steel Bearing – 30 mm

Technical Specifications:

  • Type: Pillow block unit (Thermoplastic housing + Stainless steel insert)
  • Brand: RICH
  • Model Designation: SUCPPL206N + COVER
  • Bore Diameter (d): 30 mm
  • Housing Material: Thermoplastic (PBT)
  • Bearing Material: Stainless Steel (AISI 440C or equivalent)
  • Housing Color: Black
  • Included Components: Protective end cover
  • Weight: 0.571 kg
  • Country of Origin: China

Construction Features:

  • Hygienic Design: The black thermoplastic housing is corrosion-proof and resistant to most chemicals and detergents used in wash-down environments.
  • Bearing Insert: Equipped with a stainless steel UC-type ball bearing for high moisture resistance.
  • Integrated Protection: Features a matching black end cover to safeguard the rotating shaft and bearing seals from external contaminants.
  • Mounting: Standard pillow block configuration for easy installation on flat surfaces.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
30
