UCT310 RICH

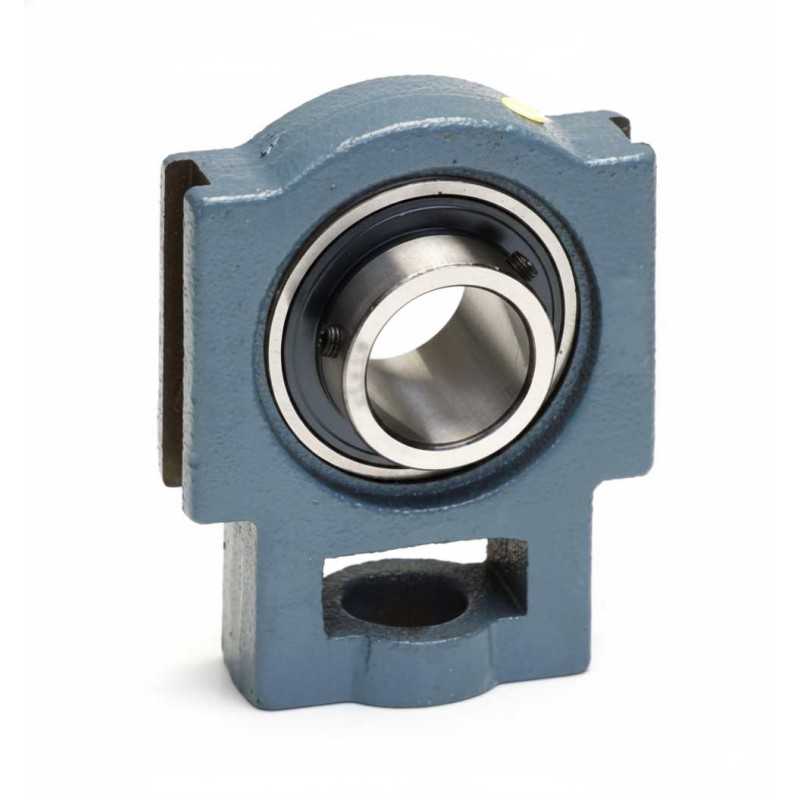

UCT310 RICH – Cast Iron Bearing Unit – 50 mm Bore

Technical Specifications:

• Type: Cast iron take-up bearing unit
• Brand: RICH
• Model Designation: UCT310
• Shaft Diameter (d): 50 mm
• Overall Length (F2): 192 mm
• Overall Height (F): 118 mm
• Housing Width (L): 151 mm
• Guide Groove Width (A1): 20 mm
• Total Housing Width (A): 40 mm
• Housing Material: Rigid cast iron
• Weight: 4.216 kg
• Country of Origin: China

Construction Features:

• Take-Up Design: Specifically engineered for applications requiring shaft tensioning or belt adjustment, featuring integrated guide grooves for sliding movement.
• Heavy-Duty Housing: Cast from high-strength iron to provide maximum structural rigidity and vibration dampening under heavy radial loads.
• Self-Aligning Insert: Equipped with a precision ball bearing insert that accommodates initial static misalignment, ensuring smooth rotation and balanced load distribution.
• Robust Lubrication: Includes an integrated grease nipple for easy relubrication, maintaining optimal performance in dusty or demanding industrial environments.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
