23130 EM W33 RICH 150x250x80

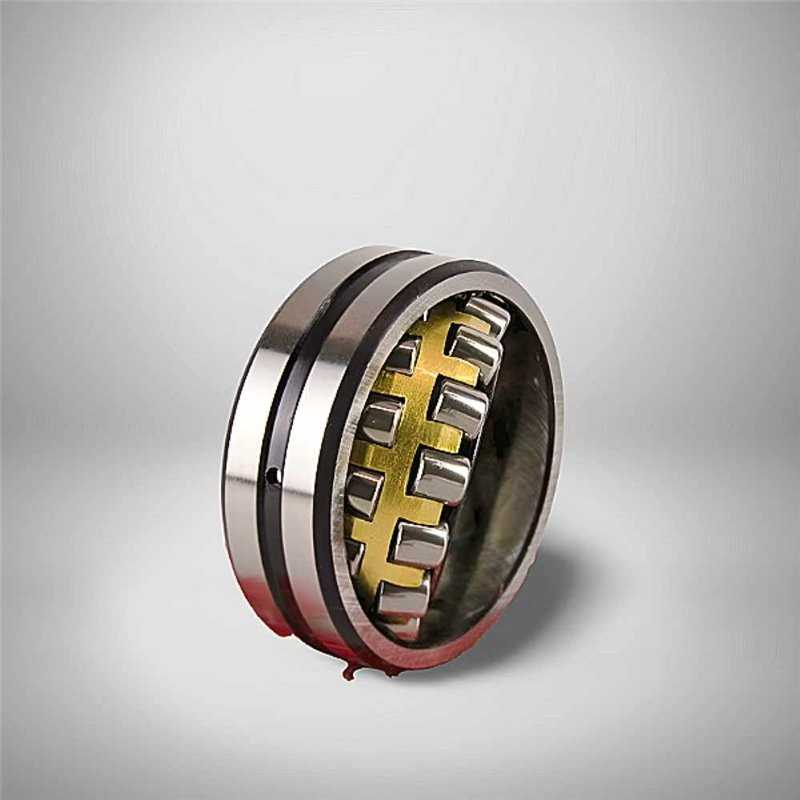

23130 EM W33 RICH – Spherical Roller Bearing – 150 x 250 x 80 mm

Technical Specifications:

• Type: Spherical roller bearing
• Brand: RICH
• Model Designation: 23130 EM W33
• Inner Diameter (d): 150 mm
• Outer Diameter (D): 250 mm
• Width (B): 80 mm
• Bore Configuration: Cylindrical bore
• Cage Material: Brass (rolling element guided)
• Execution: EM (Reinforced execution with machined brass cage)
• Lubrication Feature: W33 (Annular groove and lubrication holes in outer ring)
• Weight: 15.791 kg
• Country of Origin: China

Construction Features:

• Component Design: The assembly features a reinforced execution layout coupled with an integrated outer ring lubrication groove and oil delivery holes.
• Internal Configuration: The design incorporates a double row layout of barrel-shaped rollers aligned with a continuous spherical outer ring raceway, managed by a rolling element guided brass cage.
• Dimensional Profile: The structural framework is defined by a 150 mm cylindrical bore, a 250 mm outside diameter, and an axial width profile of 80 mm.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
