23226 K M W33 RICH 130x230x80

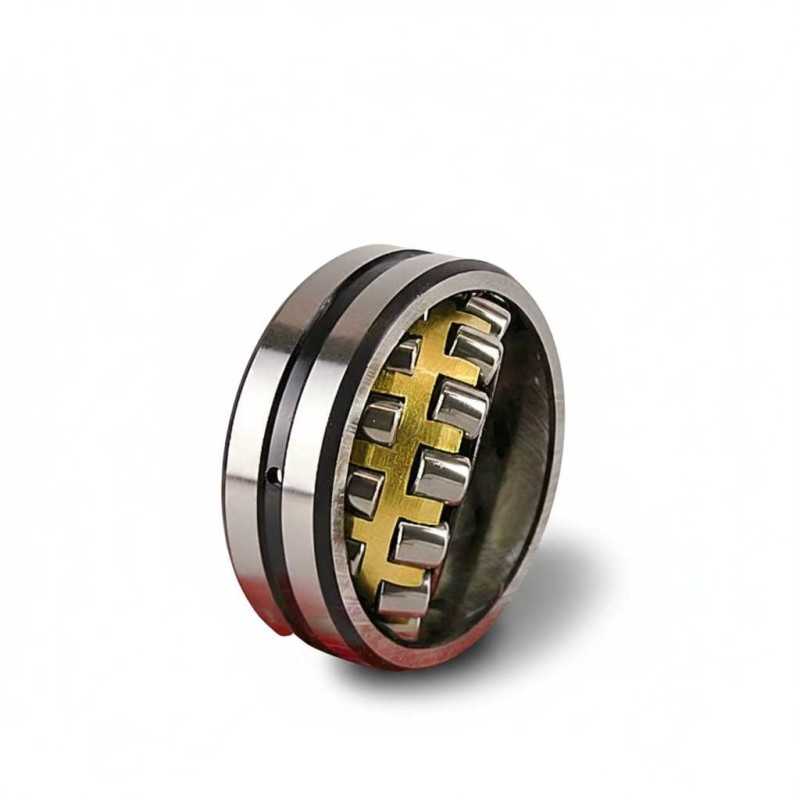

23226 K M W33 RICH – Spherical Roller Bearing – 130 x 230 x 80 mm

Technical Specifications:

• Type: Spherical roller bearing
• Brand: RICH
• Model Designation: 23226 K M W33
• Inner Diameter (d): 130 mm
• Outer Diameter (D): 230 mm
• Width (B): 80 mm
• Bore Configuration: Tapered bore (Taper 1:12)
• Cage Material: Brass (rolling element guided)
• Lubrication Feature: W33 (Annular groove and lubrication holes in outer ring)
• Weight: 13.6 kg
• Country of Origin: China

Construction Features:

• Component Design: The unit features a specialized lubrication setup with an integrated outer ring circumferential groove and matching feed holes.
• Internal Configuration: The design incorporates two rows of symmetrical barrel rollers managed by a rolling element guided machined brass cage.
• Dimensional Profile: The heavy-series layout is built around a 130 mm internal tapered diameter, a 230 mm outside diameter, a wide 80 mm width profile, and a 1:12 taper ratio.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
