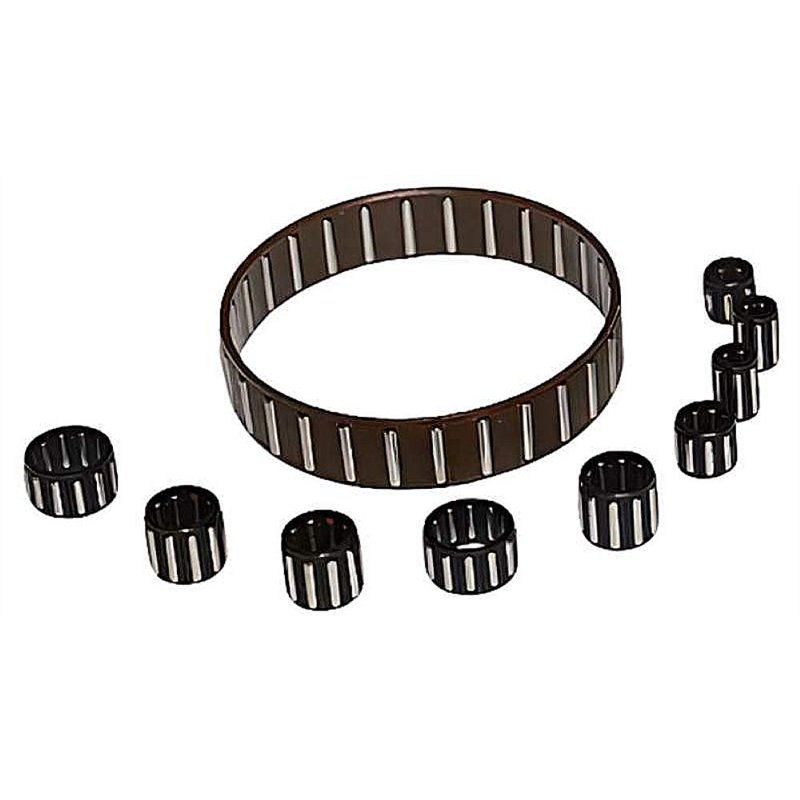

Needle Roller and Cage Assembly K38X43X27 RICH - 38 x 43 x 27 mm with Steel Cage

The K38X43X27 RICH is a needle roller and cage assembly designed to provide a high radial load capacity within a compact design. This assembly does not include inner or outer rings, and its performance depends on the hardened and precisely finished surfaces of the shaft and housing bore serving as the raceways. It comprises a set of needle rollers accurately positioned and guided by a steel cage, ensuring smooth and efficient rolling motion. The dimensions indicate a nominal bore diameter (for the shaft raceway) of 38 mm, an outer diameter (intended for a 43 mm housing bore), and a width of 27 mm, with an approximate weight of 0.038 kg. Manufactured in China by RICH.

Key Specifications:

  • Type: Needle Roller and Cage Assembly
  • Dimensions: 38 mm bore diameter (shaft as raceway) x 43 mm outer diameter (housing as raceway) x 27 mm width
  • Weight: 0.038 kg
  • Cage Material: Steel
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • High Radial Load Capacity
  • Compact and Lightweight Design
  • Space-Efficient (no need for separate inner or outer rings)
  • Smooth and Reliable Operation due to optimized roller guidance
  • Cost-Effective for applications where raceways are already hardened and ground

Data sheet

Inner Diameter
38
Outer Diameter
43
Width
27
Cage
Steel Cage
Category
Needle Roller And Cage Assembly
