6315 NR RICH 75x160x37
Rating:
(0)
EUR €
- EUR €
- USD $

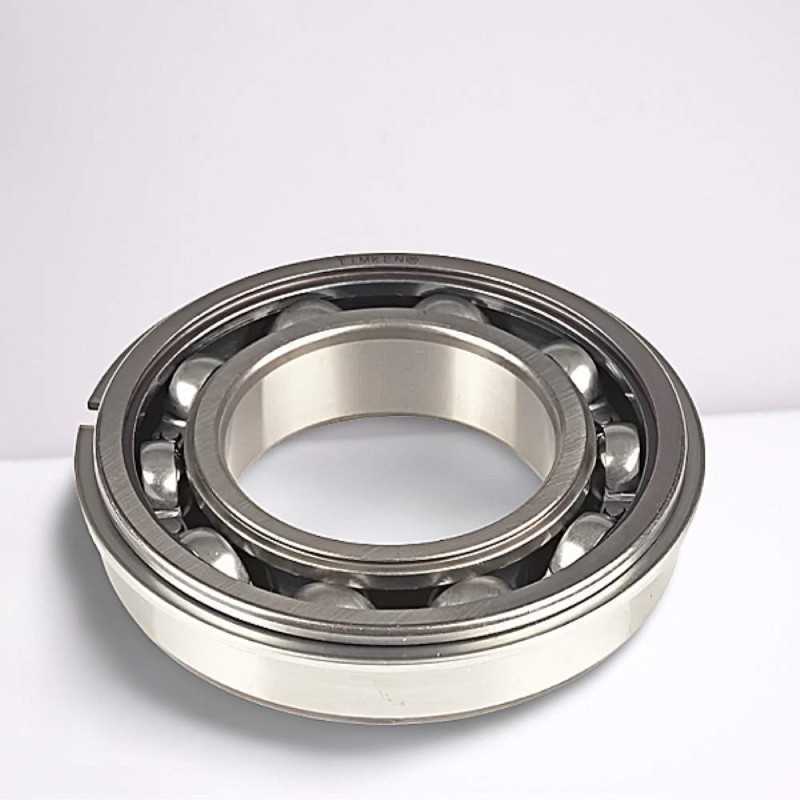

6315NR RICH Single Row Deep Groove Ball Bearing with Snap Ring Groove - 75 x 160 x 37 mm, Open Type, Normal Clearance
The 6315NR RICH is an open-type single row deep groove ball bearing designed for applications requiring smooth and efficient rotation, and features a groove on the outer ring for a snap ring. It has key dimensions of 75 mm inner diameter, 160 mm outer diameter, and a width of 37 mm. This bearing weighs approximately 3.172 kg. It features a steel cage and has CN (normal) clearance. It is made in China and does not have any seals. The NR designation indicates a groove on the outer ring, typically used with a snap ring for axial location of the bearing. Single row deep groove ball bearings can accommodate radial and axial loads in both directions.
Key Specifications:
- Type:** Single Row Deep Groove Ball Bearing with Snap Ring Groove
- Model:** 6315NR RICH
- Inner Diameter (d): 75 mm
- Outer Diameter (D): 160 mm
- Width (B): 37 mm
- Cage Material:** Steel
- Clearance:** CN (Normal)
- Sealing:** None (Open)
- Groove on Outer Ring:** Yes, with a snap ring
- Weight:** 3.172 kg
- Country of Origin:** China
Key Features:
- Deep Groove Geometry:** Suitable for moderate radial and axial loads in both directions.
- Snap Ring Groove (NR): Allows for easy axial location and mounting.
- Steel Cage:** Offers high strength and durability.
- Open Type (No Seals): Allows for relubrication and high-speed operation.
- Normal Clearance (CN): Standard radial internal clearance.
- Manufacturing Origin:** Made in China.
Data sheet
Inner Diameter
75
Outer Diameter
160
Width
37
Weight
3,1
Ball Rows
Single Row
Cage
Steel Cage
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
