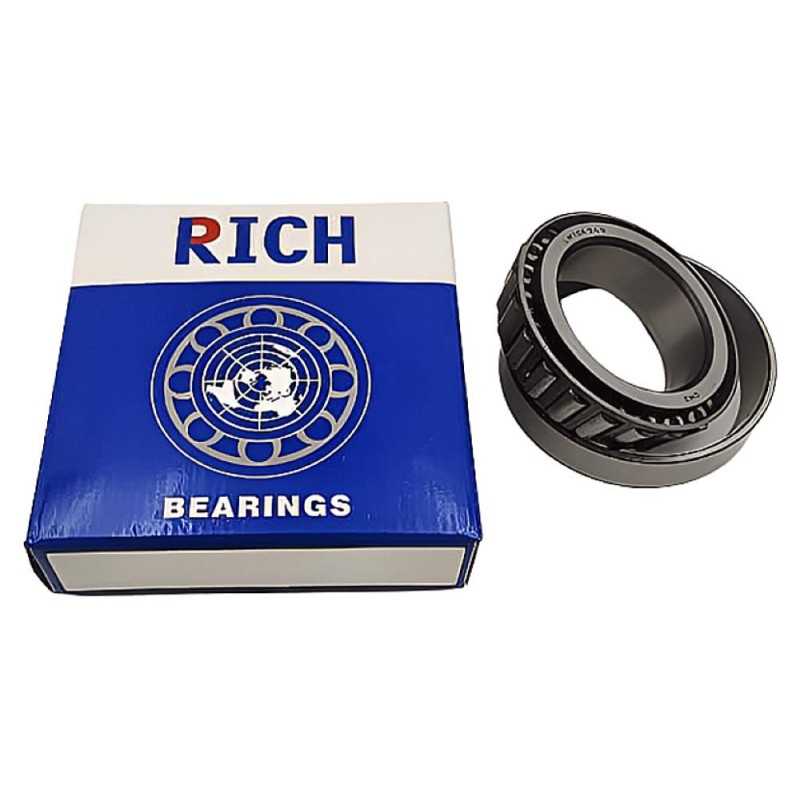

663/653 RICH Single Row Tapered Roller Bearing – 82.55 x 146.05 x 41.275 mm

Technical Specifications:

  • Product Type: Single Row Tapered Roller Bearing
  • Model: 663/653 RICH
  • Brand: RICH
  • Dimensions: 82.55 mm ID x 146.05 mm OD x 41.275 mm Width
  • Inner Ring Width: 41.275 mm
  • Outer Ring Width (C): 31.75 mm
  • Weight: 2.77 kg
  • Country of Origin: China

The 663/653 RICH is a single row tapered roller bearing with an inner diameter of 82.55 mm, an outer diameter of 146.05 mm, and a total width of 41.275 mm. The bearing is part of the inch-series range and supports combined radial and axial loads in one direction. The cone and cup are separable, allowing independent mounting and axial clearance adjustment.

Key Characteristics:

  • Tapered Roller Geometry: Supports combined radial and axial loads.
  • Component Separation: Cone and cup can be mounted independently.
  • Axial Clearance Adjustment: Clearance can be set during installation.
  • Application Use: Suitable for paired mounting in load-balanced assemblies.

Note: Manufactured under the RICH brand. Dimensions and technical data are provided for identification and compatibility.

Data sheet

Inner Diameter
82,55
Outer Diameter
146,05
Width
41,275
Weight
2,781
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Tapered Roller Bearing
