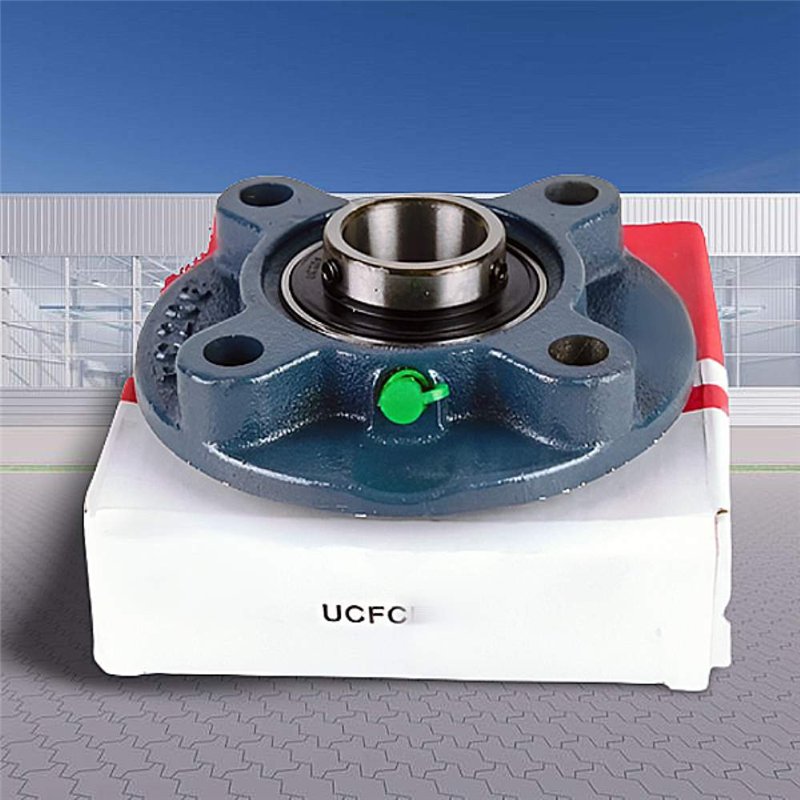

UCFC212 RICH Cast Iron Flanged Cartridge Bearing Unit - 60 mm Bore, C3 Clearance

The UCFC212 RICH is a robust flanged cartridge bearing unit featuring a cast iron housing, designed for reliable performance in demanding applications. This unit has a bore diameter (d) of 60 mm and weighs approximately 4.83 kg. While the provided dimensions show "60 x Additional dimensions include A1 = 15 mm, A2 = 36 mm, A = 48 mm, D2 = 160 mm, and D = 195 mm. It incorporates a durable steel cage and has a C3 internal clearance, which is greater than normal, making it suitable for applications with higher operating temperatures or potential misalignment. The housing features a groove for fixing protective caps. The sealing system features a double-sided lip seal covered with steel sheet washers with an outer flinger shield for enhanced corrosion protection. Manufactured in China, this RICH bearing unit offers reliable performance for its size and application requirements.

Key Specifications:

  • Bearing Type: Cast Iron Flanged Cartridge Bearing Unit
  • Model: UCFC212 RICH
  • Bore Diameter (d): 60 mm
  • Weight: Approximately 4.83 kg
  • A1: 15 mm
  • A2: 36 mm
  • A: 48 mm
  • Cage Material: Steel
  • Internal Clearance: C3 (Greater than Normal)
  • D2: 160 mm
  • D: 195 mm
  • Sealing: Double-sided lip seal covered with steel sheet washers with outer flinger shield and corrosion protection.
  • Country of Origin: China
  • Housing Feature: Groove for fixing protective caps

Key Features:

  • Robust Cast Iron Housing: Provides excellent strength and durability.
  • 60 mm Bore Diameter: Suitable for common shaft sizes.
  • C3 Clearance: Ideal for applications with higher temperatures or potential misalignment.
  • Enhanced Sealing:** Offers excellent protection against contaminants and corrosion.
  • Groove for Protective Caps: Allows for additional protection of the bearing.
  • Reliable RICH Brand: Ensures consistent quality and performance.
  • Flanged Design: Simplifies mounting and installation.

Data sheet

Inner Diameter
60
Outer Diameter
195
Width
65,1
Weight
4,94
Sealing
Lip Seal On Both Sides
