PAP 2520 P10 RICH 25x28x20 PAP2520P10 RICH
zoom_out_map
PAP 2520 P10 RICH 25x28x20 PAP2520P10 RICH

PAP 2520 P10 RICH 25x28x20

RICH
PAP2520P10
€0.41
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 50.

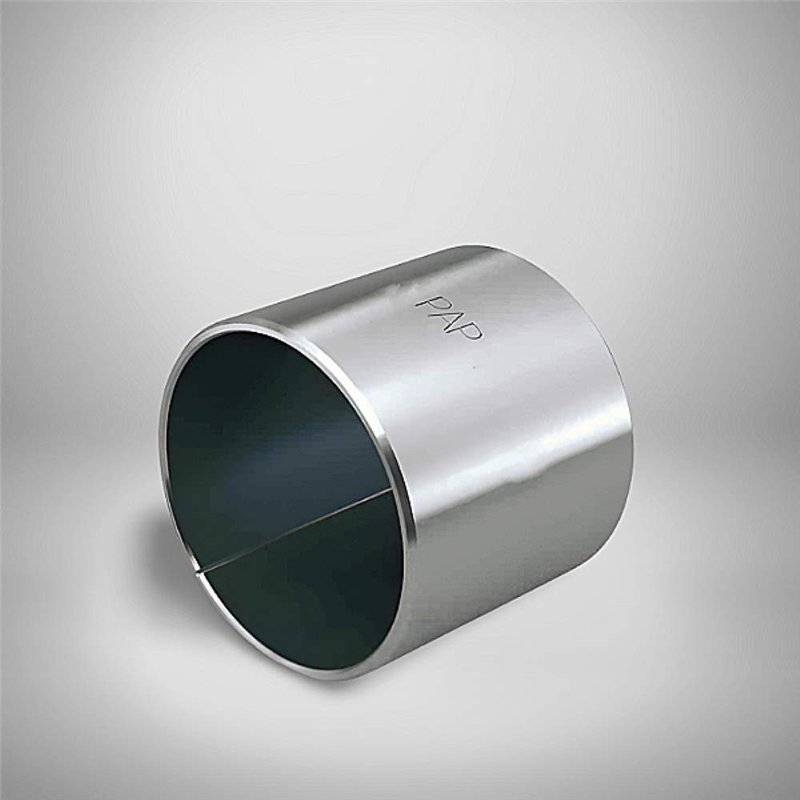

PAP 2520 P10 RICH Thin Wall Bush - 25 x 28 x 20 mm

Technical Specifications:

  • Catalog Code: PAP 2520 P10 RICH
  • Brand: RICH
  • Type: Thin wall dry sliding bush
  • Dimensions: 25 x 28 x 20 mm
  • Inner Diameter (d): 25 mm
  • Outer Diameter (D): 28 mm
  • Width (L): 20 mm
  • Material: PTFE on steel back (DU series)
  • Lubrication: Self-lubricating (Maintenance-free)
  • Weight: 0.018 kg
  • Country of Origin: China

Key Performance Advantages:

  • Self-Lubricating Dry Operation: The PTFE-based sliding layer provides a naturally low coefficient of friction, allowing for high performance without the need for additional grease or oil.
  • High Load Capacity: The steel backing provides the structural strength necessary to support heavy radial loads while maintaining precise dimensions.
  • Space-Efficient Design: With a wall thickness of only 1.5 mm, this bush is ideal for compact assemblies where radial space is at a premium.
  • Corrosion Protection: The steel backing is typically tin-plated or copper-plated to enhance durability and resistance to harsh environmental conditions.

Transparency Note: This product is manufactured under the RICH brand. The code PAP 2520 P10 is used for identification and interchange purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
25
Outer Diameter
28
Width
20
Category
Thin wall bush
