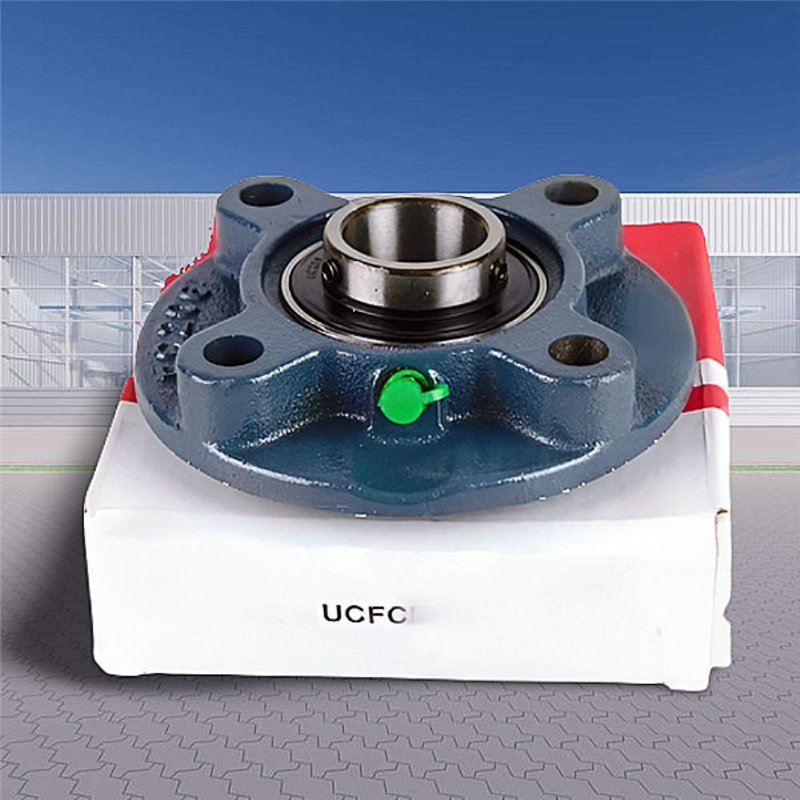

UCFC 201 RICH Cast Iron Flanged Cartridge Bearing Unit - 12 mm Bore, C3 Clearance
The UCFC 201 RICH is a compact flanged cartridge bearing unit featuring a cast iron housing, designed for reliable performance in various applications. This unit has a bore diameter (d) of 12 mm and weighs approximately 0.74 kg. While the provided dimensions show "12 x 0 x 0", the key dimension is the bore size. Additional dimensions include A1 = 6 mm, A2 = 20.5 mm, A = 25.5 mm, D2 = 78 mm, and D = 100 mm. It incorporates a durable steel cage and has a C3 internal clearance, which is greater than normal, making it suitable for applications with higher operating temperatures or potential misalignment. The sealing system features a double-sided lip seal covered with steel sheet washers with an outer flinger shield for enhanced corrosion protection. Manufactured in China, this RICH bearing unit is a dependable choice for its size and load capacity.
Key Specifications:
- Bearing Type: Cast Iron Flanged Cartridge Bearing Unit
- Model: UCFC 201 RICH
- A1: 6 mm
- A2: 20.5 mm
- A: 25.5 mm
- Cage Material: Steel
- Internal Clearance: C3 (Greater than Normal)
- D2: 78 mm
- D: 100 mm
- Sealing: Double-sided lip seal covered with steel sheet washers with outer flinger shield and corrosion protection.
- Country of Origin: China
Key Features:
- Robust Cast Iron Housing: Provides good strength and durability for its size.
- 12 mm Bore Diameter: Suitable for smaller shaft sizes.
- C3 Clearance: Ideal for applications with higher temperatures or potential misalignment.
- Enhanced Sealing: Offers good protection against contaminants and corrosion.
- Reliable RICH Brand: Ensures consistent quality and performance.
- Compact Flanged Design: Simplifies mounting in space-constrained environments.
Data sheet
Inner Diameter
12
Outer Diameter
100
Width
31
Weight
0,73
Sealing
Lip Seal On Both Sides
