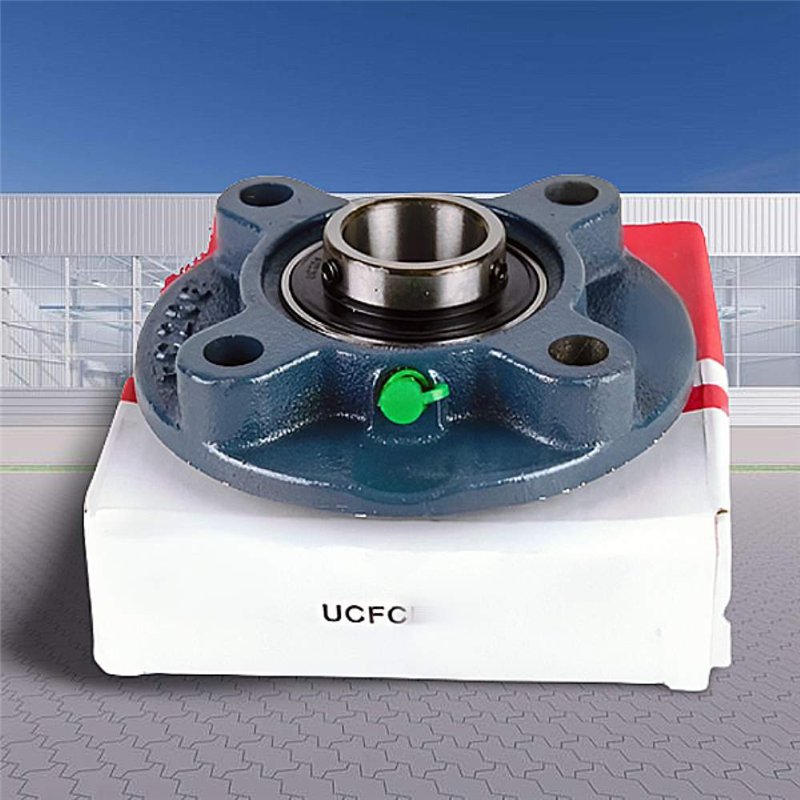

UCFC211 RICH Cast Iron Flanged Cartridge Bearing Unit - 55 mm Bore
The UCFC211 RICH is a robust flanged cartridge bearing unit featuring a cast iron housing, designed for reliable performance in demanding applications. This unit has a bore diameter (d) of 55 mm and weighs approximately 3.868 kg. While the provided dimensions show "55 x Additional dimensions include A1 = 13 mm, A2 = 30 mm, A = 42 mm, D2 = 150 mm, and D = 185 mm. It incorporates a durable steel cage and has a C3 internal clearance, which is greater than normal, making it suitable for applications with higher operating temperatures or potential misalignment. The sealing system features a double-sided lip seal covered with steel sheet washers with an outer flinger shield for enhanced corrosion protection. Manufactured in China, this RICH bearing unit offers a dynamic load rating of 43550 N.
Key Specifications:
- Bearing Type: Cast Iron Flanged Cartridge Bearing Unit
- Model: UCFC211 RICH
- Bore Diameter (d): 55 mm
- Weight: Approximately 3.868 kg
- A1: 13 mm
- A2: 30 mm
- A: 42 mm
- Cage Material: Steel
- D2: 150 mmD
- D: 185 mm
- Sealing: Double-sided lip seal covered with steel sheet washers with outer flinger shield and corrosion protection.
- Country of Origin: China
Key Features:
- Robust Cast Iron Housing: Provides excellent strength and durability.
- 55 mm Bore Diameter: Suitable for common shaft sizes.
- C3 Clearance: Ideal for applications with higher temperatures or potential misalignment.
- Enhanced Sealing:** Offers excellent protection against contaminants and corrosion.
- High Load Capacity: Capable of handling significant dynamic loads.
- Reliable RICH Brand: Ensures consistent quality and performance.
- Flanged Design: Simplifies mounting and installation.
Data sheet
Inner Diameter
55
Outer Diameter
185
Width
55,6
Sealing
Lip Seal On Both Sides
