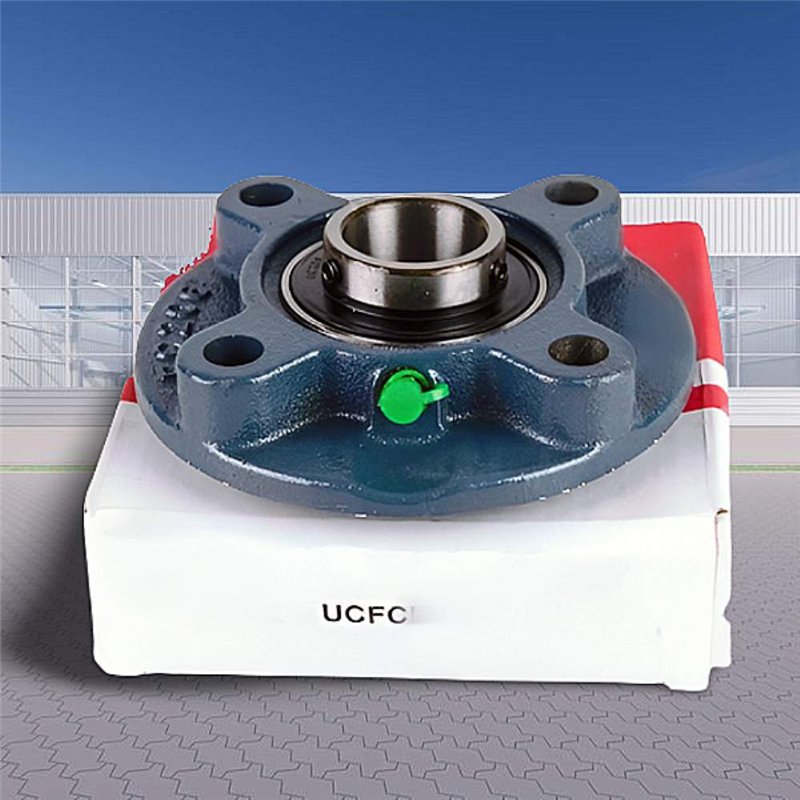

UCFC205 RICH Cast Iron Flanged Cartridge Bearing Unit - 25 mm Bore, CN Clearance

The UCFC205 RICH is a compact flanged cartridge bearing unit featuring a cast iron housing, designed for reliable performance in various applications. This unit has a bore diameter (d) of 25 mm and weighs approximately 0.915 kg. While the provided dimensions show "25 x Additional dimensions include A1 = 7 mm, A2 = 21 mm, A = 27 mm, D2 = 90 mm, and D = 115 mm. It has a Normal (CN) internal clearance, suitable for applications with standard tolerances. Manufactured in China, this RICH bearing unit is a dependable choice for its size and load capacity in typical operating conditions.

Key Specifications:

  • Bearing Type: Cast Iron Flanged Cartridge Bearing Unit
  • Model: UCFC205 RICH
  • Bore Diameter (d): 25 mm
  • Weight: Approximately 0.915 kg
  • A1: 7 mm
  • A2: 21 mm
  • A: 27 mm
  • Internal Clearance: CN (Normal)
  • D2: 90 mm
  • D: 115 mm
  • Country of Origin: China

Key Features:

  • Robust Cast Iron Housing: Provides good strength and durability for its size.
  • 25 mm Bore Diameter: Suitable for common shaft sizes.
  • Standard Clearance (CN): Appropriate for typical operating tolerances.
  • Reliable RICH Brand: Ensures consistent quality and performance.
  • Compact Flanged Design: Simplifies mounting in space-constrained environments.

Data sheet

Inner Diameter
25
Outer Diameter
115
Width
34,1
Weight
1
Sealing
Lip Seal On Both Sides
