RAX 420 RICH 20x30x24

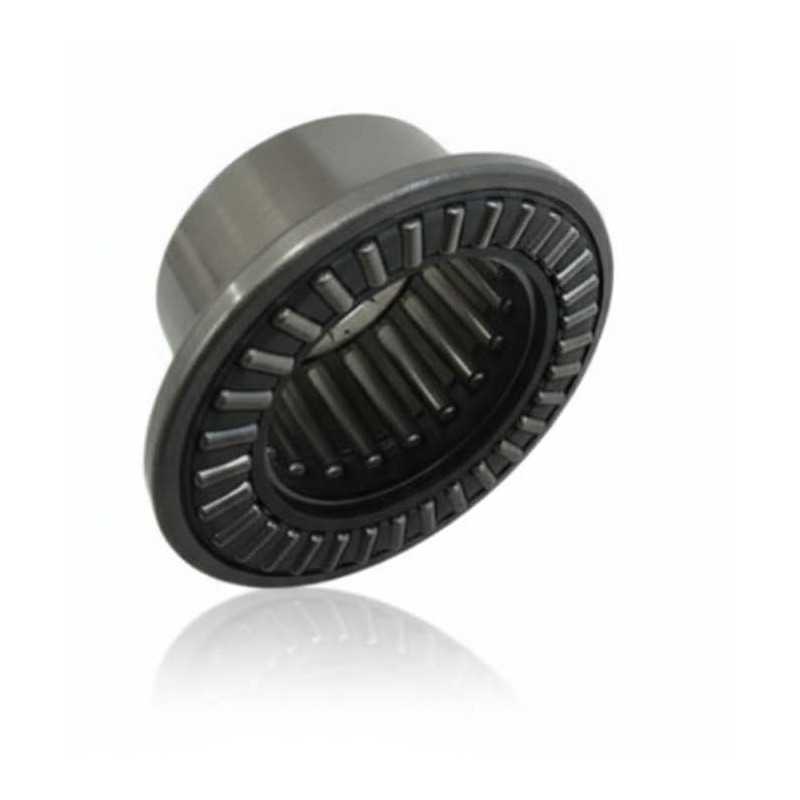

RAX 420 RICH Combined Bearing – 20 × 30 × 24 mm

RAX 420 RICH is a combined bearing designed for robust operational performance. Dimensional and structural characteristics correspond to the 20 × 30 × 24 mm specification.

Technical Specifications:

• Brand: RICH
• Type: Combined bearing
• Model: RAX 420 RICH
• Inner Diameter (d): 20 mm
• Outer Diameter (D): 30 mm
• Total Width (H): 24 mm
• Outer Ring Width (C): 6 mm
• Flange Diameter (D1): 35 mm
• Weight: 0.073 kg
• Country of Origin: China

Performance Characteristics:

• Load Profile: Simultaneous management of radial and axial load components in a compact unit
• Structural Design: Integrated needle roller and thrust bearing assembly for high precision
• Spatial Efficiency: Low-profile construction optimized for applications with limited radial and axial space
• Material Type: High-carbon chrome bearing steel for durability and stiffness
• Application Interface: Precision-engineered for industrial motion control and mechanical drive assemblies

Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with any original equipment manufacturer. Country of origin: China.
