GE 30 ET 2RS RICH 35x55x25
Rating:
(0)
EUR €
- EUR €
- USD $

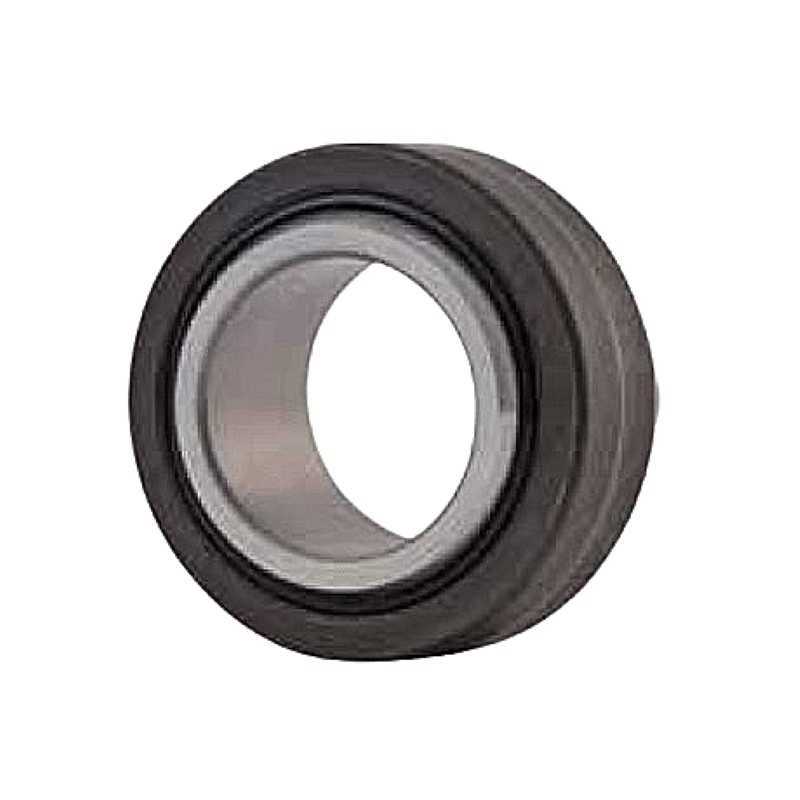

GE 30 ET 2RS RICH Spherical Plain Bearing - 30 x 47 x 22 mm
Technical Specifications:
- Product Type: Spherical Plain Bearing
- Model Designation: GE 30 ET 2RS
- Brand: RICH
- Bore Diameter (d): 30 mm
- Outer Diameter (D): 47 mm
- Width (B): 22 mm
- Outer Ring Width (C): 18 mm
- Friction Pair: Chrome Steel/PTFE
- Sealing: Double-sided Rubber, Contact (2RS)
- Weight: 0.143 kg
- Country of Origin: China
The GE 30 ET 2RS RICH is a high-performance spherical plain bearing engineered to accommodate substantial angular misalignment between the shaft and housing while supporting high static and dynamic radial loads. This bearing features a self-lubricating Chrome Steel/PTFE friction pair, ensuring it is completely maintenance-free as the PTFE liner eliminates the need for periodic re-lubrication. The suffix 2RS indicates the presence of double-sided rubber contact seals, which provide superior protection against the ingress of dust, dirt, and moisture, thereby extending the bearing's service life in challenging operating environments. With dimensions of 30 mm bore, 47 mm outer diameter, and 22 mm width, the GE 30 ET 2RS RICH is a dependable solution for linkage mechanisms, hydraulic cylinders, and construction equipment.
Key Performance Advantages:
- Maintenance-Free Operation: PTFE composite liner provides continuous self-lubrication.
- Fully Sealed (2RS): Double-sided contact seals maximize protection against contamination.
- High Misalignment Capacity: Spherical geometry efficiently handles angular movement and compensates for shaft deflection.
- RICH Quality: A durable, high-capacity component engineered for long service life.
Data sheet
Inner Diameter
35
Outer Diameter
55
Width
25
Weight
0,143
Sealing
Lip Seal On Both Sides
