SA 203 RICH 17x40x28.6

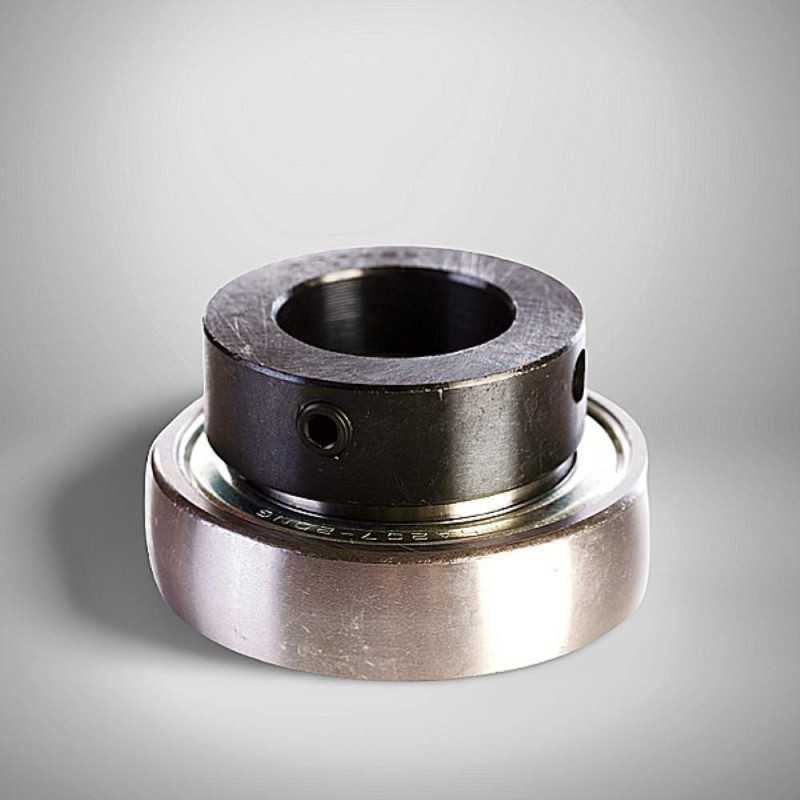

The SA203 RICH is an insert ball bearing (17x40x28.6 mm) with a spherical outer ring and double-sided lip seals for durability and misalignment tolerance.

RICH
SA203
€3.43
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

SA203 RICH Insert Ball Bearing - 17 x 40 x 28.6 mm

OE References:

  • INS-SXV-17M (C=13mm) DODGE
  • SXV-17M (C=13mm) DODGE
  • AZ 19.970 JOHN DEERE

Technical Specifications:

  • Brand: RICH
  • Type: Insert Ball Bearing
  • Dimensions: 17 x 40 x 28.6 mm
  • Inner Ring Width: 21.4 mm
  • Outer Ring Width (C): 12 mm
  • Weight: 0.115 kg
  • Sealing: Double-sided lip seal covered with a plate
  • Outer Ring Profile: Spherical
  • Clearance: CN - Normal Clearance
  • Country of Origin: China

The SA203 RICH is a robust insert ball bearing engineered for use in demanding agricultural and industrial applications. Its spherical (rounded) outer ring allows it to compensate for initial static misalignment between the shaft and the housing. This bearing features a highly effective double-sided lip seal covered by a metal plate, providing superior protection against dust, dirt, and moisture. This advanced sealing system ensures that the internal lubricant is retained and contaminants are kept out, significantly extending the bearing's service life, as confirmed by its cross-references to equipment from John Deere and Dodge.

Key Performance Advantages:

  • Misalignment Compensation: The spherical outer ring profile accommodates initial static misalignment, reducing stress on the bearing and shaft.
  • Superior Contamination Protection: The robust, multi-layer sealing system effectively shields the bearing from harsh environmental elements.
  • Durability: Built to withstand demanding conditions, providing reliable and long-lasting performance.
  • Versatile Application: Ideal for use in agricultural and construction machinery, conveyors, and other industrial equipment.

Data sheet

Inner Diameter
17
Outer Diameter
40
Width
28,6
Weight
0,115
Clearance
CN (Normal)
