GE40-UK-2RS RICH 40x62x28
Rating:
(0)
EUR €
- EUR €
- USD $

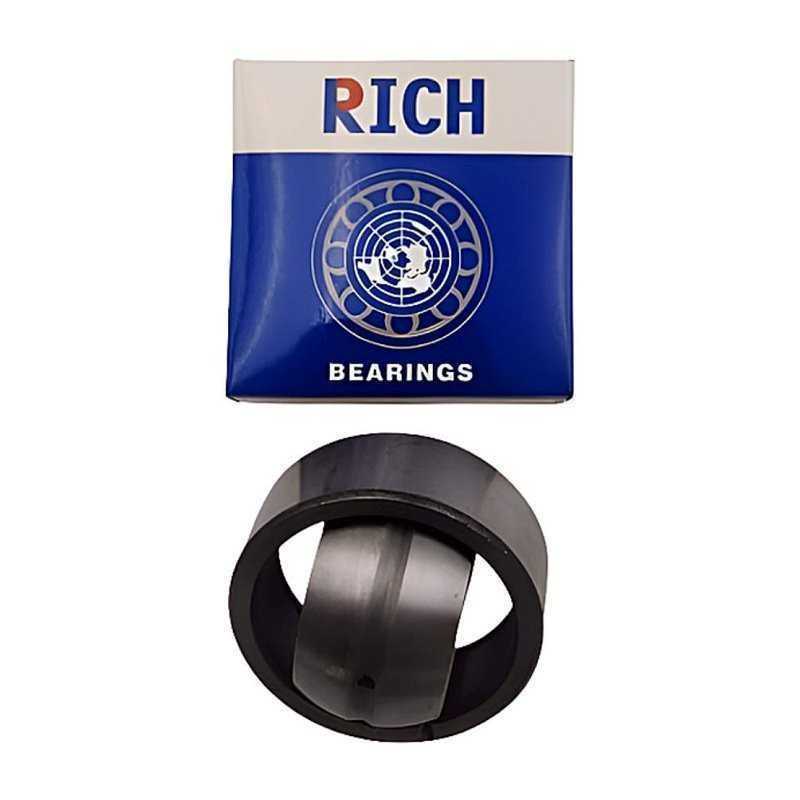

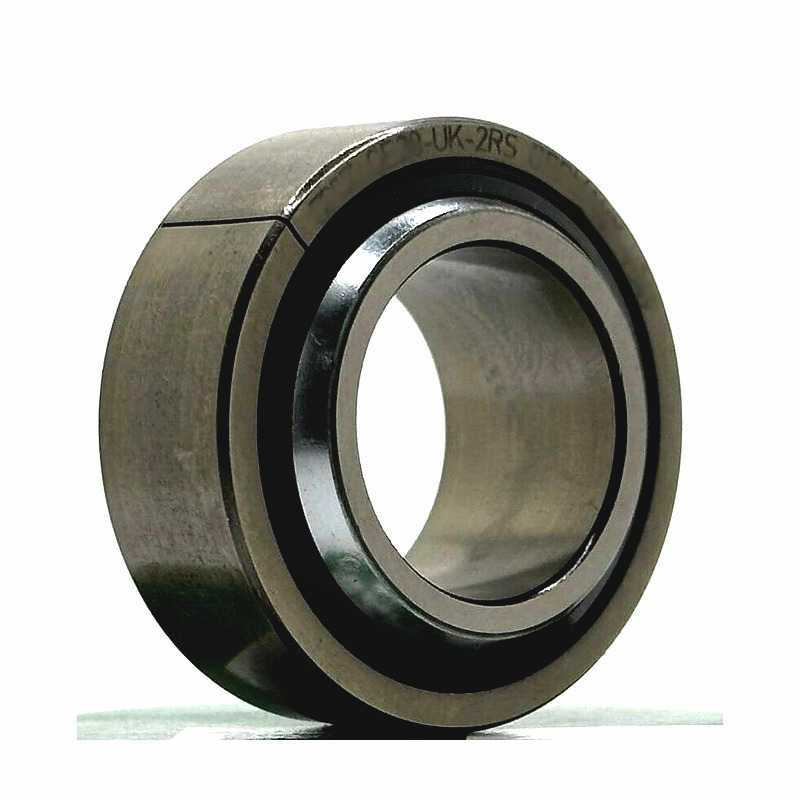

GE 40 UK 2RS RICH Spherical Plain Bearing - 40 x 62 x 28 mm
Technical Specifications:
- Product Type: Spherical Plain Bearing
- Model Designation: GE 40 UK 2RS
- Brand: RICH
- Bore Diameter (d): 40 mm
- Outer Diameter (D): 62 mm
- Width (B): 28 mm
- Outer Ring Width (C): 22 mm
- Friction Pair: Chrome Steel/PTFE
- Sealing: Double-sided Rubber, Contact (2RS)
- Weight: 0.307 kg
- Country of Origin: China
The GE 40 UK 2RS RICH is a premium spherical plain bearing engineered to accommodate large misalignment between the shaft and housing while supporting heavy static and dynamic radial loads. This bearing features a self-lubricating Chrome Steel/PTFE friction pair, ensuring it is maintenance-free and reliable over a long service life without the need for periodic re-lubrication. The suffix 2RS indicates the presence of double-sided rubber contact seals, which provide exceptional protection against dust, dirt, and moisture, securing the bearing's performance even in contaminated operating environments. With dimensions of 40 mm bore, 62 mm outer diameter, and 28 mm width, the GE 40 UK 2RS RICH is commonly used in machinery such as linkage mechanisms, steering joints, and hydraulic cylinders.
Key Performance Advantages:
- Maintenance-Free Operation: PTFE/chrome steel friction surface eliminates the need for re-lubrication.
- Sealed (2RS): Double-sided contact rubber seals protect internal components from contaminants and moisture.
- Accommodates Misalignment: Spherical design efficiently handles angular movement and compensates for shaft deflection.
- RICH Quality: A high-capacity, durable component built for stability and long service life.
Data sheet
Inner Diameter
40
Outer Diameter
62
Width
28
Weight
0,307
Sealing
Lip Seal On Both Sides
