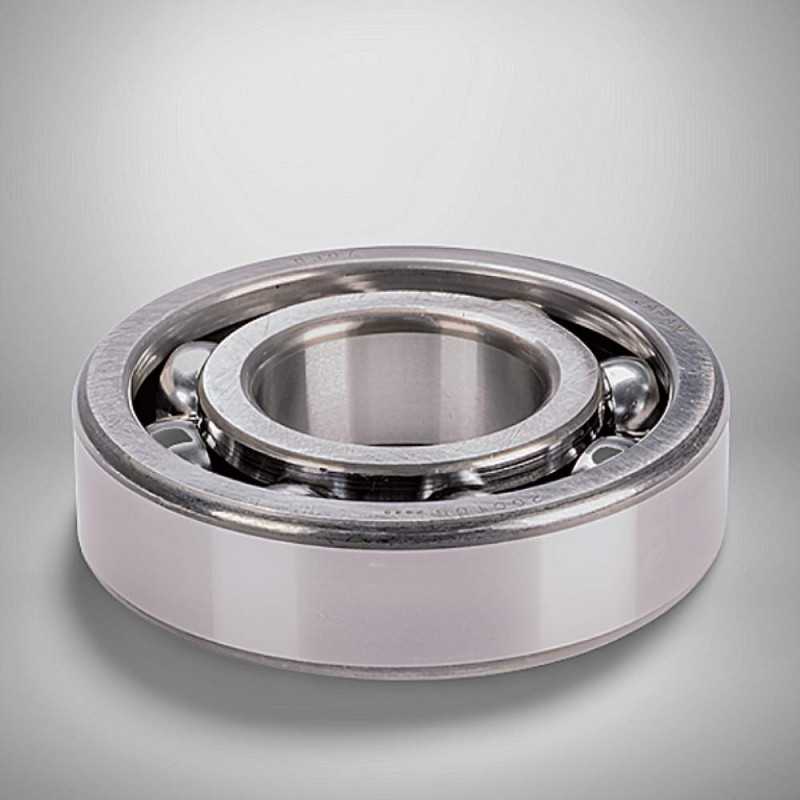

RMS12 RICH Single Row Deep Groove Ball Bearing - 38.1 x 95.25 x 23.815 mm, Open Type, Normal Clearance
The RMS12 RICH is an open-type single row deep groove ball bearing designed for applications requiring smooth and efficient rotation. It has key dimensions of 38.1 mm inner diameter, 95.25 mm outer diameter, and a width of 23.815 mm. This bearing weighs approximately 0.8 kg. It features a steel cage and has CN (normal) clearance. It is made in China and does not have any seals, making it suitable for applications where external lubrication or no sealing is required. Single row deep groove ball bearings can accommodate radial and axial loads in both directions.
Key Specifications:
- Type:** Single Row Deep Groove Ball Bearing
- Model:** RMS12 RICH
- Inner Diameter (d): 38.1 mm (1.5 inches)
- Outer Diameter (D): 95.25 mm (3.75 inches)
- Width (B): 23.815 mm (0.9376 inches)
- Cage Material:** Steel
- Clearance:** CN (Normal)
- Sealing:** None (Open)
- Weight:** 0.8 kg
- Country of Origin:** China
Key Features:
- Deep Groove Geometry:** Suitable for moderate radial and axial loads in both directions.
- Steel Cage:** Offers high strength and durability.
- Open Type (No Seals): Allows for relubrication and high-speed operation.
- Normal Clearance (CN): Standard radial internal clearance.
- Imperial Dimensions:** Common in certain applications and industries.
- Manufacturing Origin:** Made in China.
