6202-2RS/12MM RICH 12x35x11

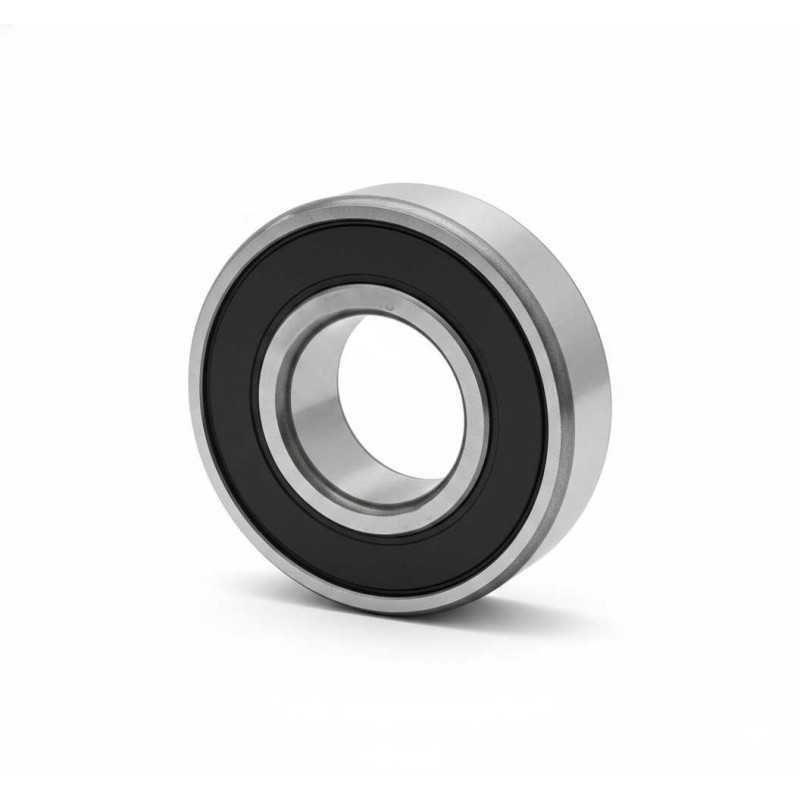

6202-2RS/12MM RICH – Single Row Deep Groove Ball Bearing – 12 x 35 x 11 mm

Technical Specifications:

• Type: Single row deep groove ball bearing
• Brand: RICH
• Model Designation: 6202-2RS/12MM
• Inner Diameter (d): 12 mm
• Outer Diameter (D): 35 mm
• Width (B): 11 mm
• Internal Clearance: CN (Normal clearance)
• Sealing: Double-sided rubber contact seals (2RS)
• Weight: 0.05 kg
• Country of Origin: China

Performance Characteristics:

• Specialized Application: Specifically engineered as an alternator bearing for automotive and industrial electrical systems.
• Custom Bore Size: Features a specialized 12 mm inner diameter (12MM suffix), differing from the standard 15 mm bore of a regular 6202.
• Sealing Configuration: High-performance rubber contact seals (2RS) protect against dust and moisture.
• Internal Geometry: Optimized single row deep groove ball raceway for high-speed reliability.
• Mass: 0.05 kg unit weight.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
