SS-SB207-20 RICH 31,75x72 x32 SS-SB207-20 RICH
search
  • SS-SB207-20 RICH 31,75x72 x32 SS-SB207-20 RICH

SS-SB207-20 RICH 31,75x72 x32

RICH
SS-SB207-20
€14.84
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

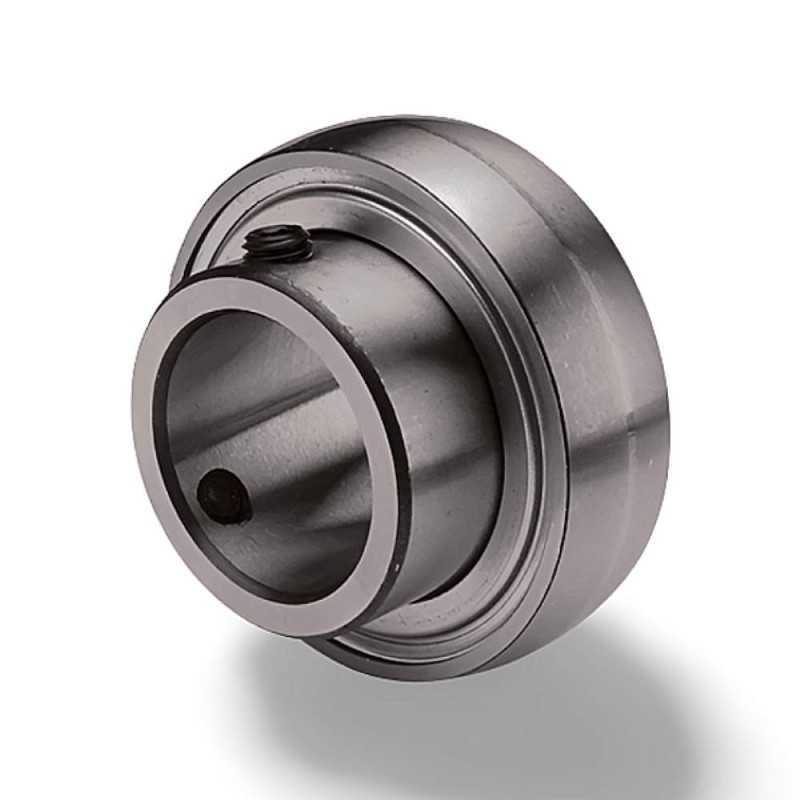

SS-SB207-20 RICH Stainless Steel Insert Ball Bearing - Cylindrical Bore - 31.75 x 72 x 32 mm

Technical Specifications:

  • Brand: RICH
  • Type: Insert Ball Bearing
  • Model: SSB207-20
  • Material: Stainless Steel
  • Inner Diameter (d): 31.75 mm
  • Outer Diameter (D): 72 mm
  • Inner Ring Width: 32 mm
  • Outer Ring Width (C): 17 mm
  • Dimensions: 31.75 x 72 x 32 mm
  • Bore Type: Cylindrical
  • Outer Ring Shape: Rounded
  • Clearance: CN - Normal
  • Weight: 0.418 kg
  • Country of Origin: China

Product Overview

The SSB207-20 RICH is a durable, **Stainless Steel Insert Ball Bearing** designed for demanding applications, particularly in the food, beverage, and chemical industries where resistance to moisture and corrosive agents is essential. Manufactured by RICH, this unit offers a reliable solution for machinery that requires frequent washdowns or operates in high-humidity environments.

This insert bearing features a **cylindrical bore** of 31.75 mm, intended for mounting onto a shaft where additional locking mechanisms, such as adapter sleeves or set screws, are typically employed. The bearing's outer ring is **rounded**, allowing it to compensate for initial minor misalignment, making installation simpler and reducing stress on the shaft and housing. Built with **Normal (CN) internal clearance** and constructed from high-grade stainless steel, the SSB207-20 RICH ensures excellent corrosion resistance and dependable, smooth operation.

Key Performance Advantages:

  • Stainless Steel Construction: Provides superior resistance to rust and corrosion in wet or chemical environments.
  • Rounded Outer Ring: Facilitates minor initial misalignment, simplifying installation into compatible housings.
  • Cylindrical Bore (31.75 mm): Allows for versatile mounting options using locking mechanisms.
  • High Durability: Built to withstand frequent washdowns and challenging operational conditions.

Transparency Note

The SSB207-20 bearing is manufactured by RICH in China to meet stringent quality and dimensional standards, ensuring reliable interchangeability and performance.

Data sheet

Inner Diameter
31,75
Outer Diameter
72
Width
32
Weight
0,38
Ball Rows
Single Row
