SB207-20 RICH 31,75x72x32

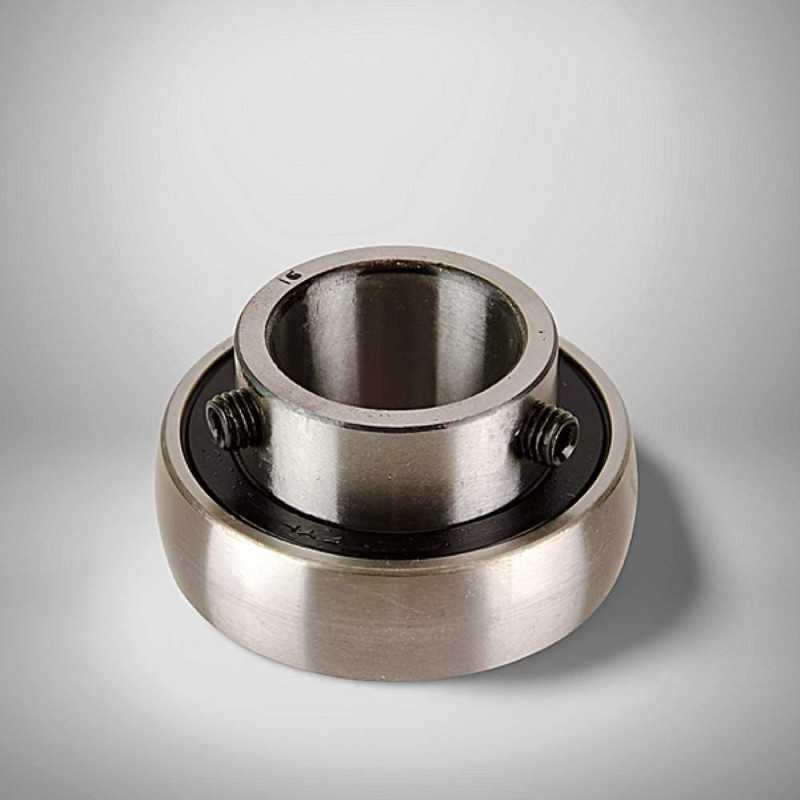

SB207-20 RICH Insert Ball Bearing - 31.75 x 72 x 32 mm

The SB207-20 RICH is a high-quality insert ball bearing, meticulously manufactured by RICH in China. This versatile bearing is engineered for straightforward mounting in bearing units and provides reliable performance across various industrial applications. With precise dimensions of a 31.75 mm bore (equivalent to 1-1/4 inch), a 72 mm outer diameter, and a 32 mm width, it ensures optimal fitting and smooth operation.

This RICH insert ball bearing features a normal radial clearance (CN), which allows for standard operating conditions and efficient performance. Its rounded outer ring facilitates self-alignment within compatible housings, accommodating minor shaft misalignments. The inner ring has a width of 32 mm, while the outer ring's width (C) is 17 mm. For superior protection, it comes equipped with advanced double-sided lip seals covered with steel sheet washers and an outer flinger shield with corrosion protection. This multi-layered sealing system effectively shields the internal components from dust, dirt, and moisture ingress, while retaining lubrication and enhancing corrosion resistance. This robust sealing significantly contributes to the bearing's extended service life and reduced maintenance requirements, making it ideal for challenging and contaminant-prone environments.

Weighing 0.418 kg, this robust yet efficient component from RICH ensures consistent and durable operation. It is ideally suited for applications requiring reliable rotation and enhanced protection, such as agricultural machinery, conveying systems, and general industrial equipment, where precise dimensions and strong performance are essential.

Key Specifications:

• Type: Insert Ball Bearing
• Brand: RICH
• Model: SB207-20 RICH
• Dimensions: 31.75 mm bore x 72 mm outer diameter x 32 mm width
• Bore Diameter (d): 31.75 mm
• Outer Diameter (D): 72 mm
• Width: 32 mm
• Inner Ring Width: 32 mm
• Outer Ring Width (C): 17 mm
• Clearance: CN - normal clearance
• Rounded Outer Ring: Yes
• Sealing: Double-sided lip seal covered with a steel sheet washers with outer flinger shield with corrosion protection.
• Weight: 0.418 kg
• Country of Origin: China

Key Advantages:

• Ease of Installation: Designed as an insert bearing for straightforward mounting into compatible housings.
• Self-Aligning Capability: The rounded outer ring allows for minor shaft misalignments, reducing stress on the bearing.
• Superior Sealing & Corrosion Protection: Advanced double-sided lip seals with steel sheet washers and flinger shields provide excellent defense against contaminants and enhanced corrosion resistance, extending bearing life in harsh environments.
• Optimal Clearance: Normal radial clearance (CN) ensures efficient and stable operation under standard conditions.
• Versatile Application: Suitable for a broad range of general industrial and agricultural machinery.
• RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance you can count on.
