81118 RICH 90x120x22

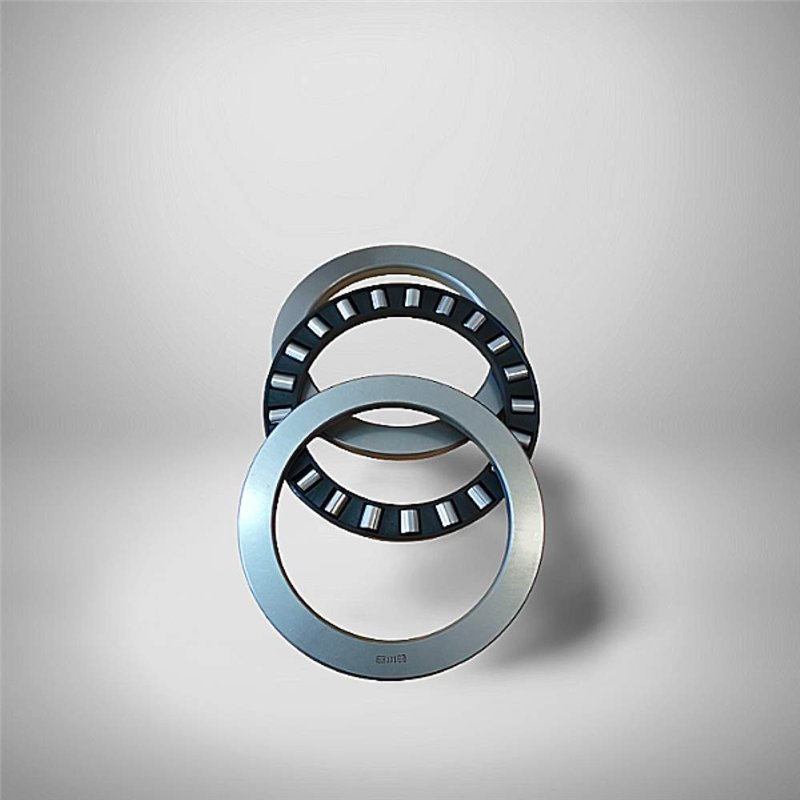

81118 TN RICH – Axial Cylindrical Roller Bearing – 90 x 120 x 22 mm

Technical Specifications:

• Type: Axial cylindrical roller bearing
• Brand: RICH
• Model Designation: 81118.TN
• Inner Diameter (d): 90 mm
• Outer Diameter (D): 120 mm
• Total Height (H): 22 mm
• Cage Material: Polyamide (TN)
• Weight: 0.162 kg
• Country of Origin: China

Performance Characteristics:

• Structural Configuration: Thrust bearing assembly consisting of a high-precision cylindrical roller and cage set, paired with a shaft washer and a housing washer.
• Cage Specification: Features a glass-fiber reinforced polyamide cage (TN), providing a lightweight solution with excellent roller guidance and reduced friction.
• Load Management: Specifically designed to accommodate high axial loads in a single direction with high mechanical stiffness and minimal space requirements.
• Mechanical Interface: 90 x 120 x 22 mm dimensional format manufactured according to standardized industrial tolerances for consistent operational reliability.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
