LR201-2RS RICH 12x35x10

RICH
LR2012RS
€2.00
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

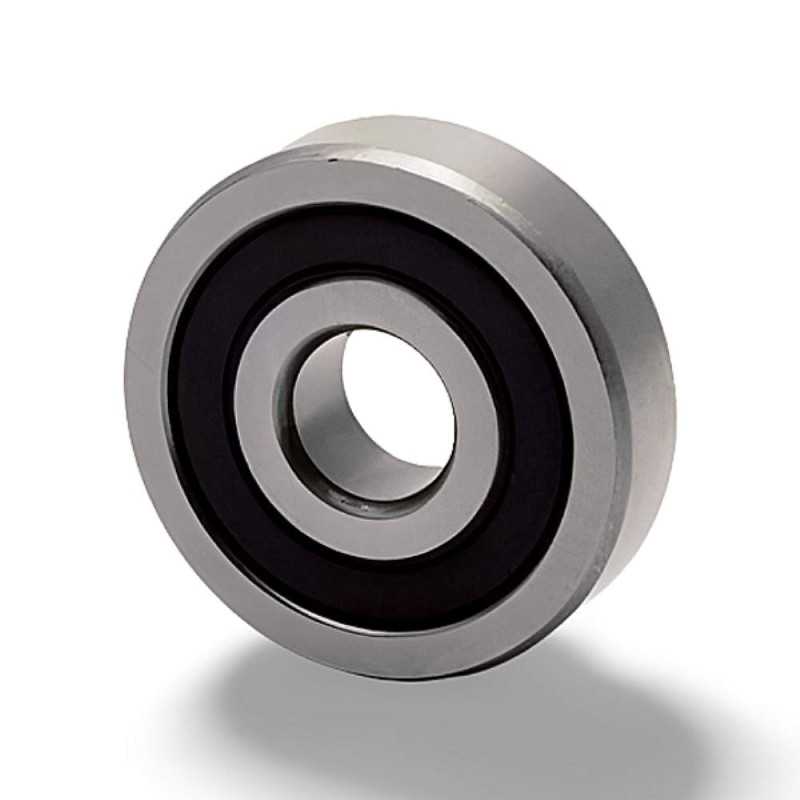

LR201.2RS RICH Track Roller – 12 x 35 x 10 mm with Rounded Outer Ring

The LR201.2RS RICH is a reliable track roller bearing designed for various linear motion and cam follower applications. Its key feature, a rounded outer ring, helps to minimize edge pressure and accommodate slight misalignments, ensuring smooth and consistent operation. Equipped with double-sided rubber contact seals (2RS), it offers effective protection against dust and other contaminants, contributing to a longer service life. This track roller has a 12 mm inner diameter (ID), a 35 mm outer diameter (OD), a 10 mm width, and weighs approximately 0.047 kg. Manufactured to high-quality standards in China.

Key Specifications:

  • Type: Track Roller Bearing
  • Dimensions: 12 mm (ID) x 35 mm (OD) x 10 mm (Width)
  • Weight: 0.047 kg
  • Sealing: Double Rubber Contact Seals (2RS)
  • Outer Ring Profile: Rounded
  • Country of Origin: China

Key Advantages:

  • Smooth Operation: The rounded outer ring design ensures smooth and low-friction movement along the track surface.
  • Reduced Edge Pressure: Minimizes stress on the track edges, enhancing the lifespan of both the roller and the track.
  • Effective Contamination Protection: The double 2RS rubber seals provide reliable protection against dust and debris.
  • Long Service Life: High-quality materials and effective sealing contribute to extended operational life.
  • Versatile Applications: Suitable for a wide range of linear motion and cam follower systems.
  • Compact Design: Allows for easy integration into various mechanical assemblies.

Data sheet

Inner Diameter
12
Outer Diameter
35
Width
10
Weight
0,05
Sealing
Lip Seal On Both Sides
Category
Track Roller
