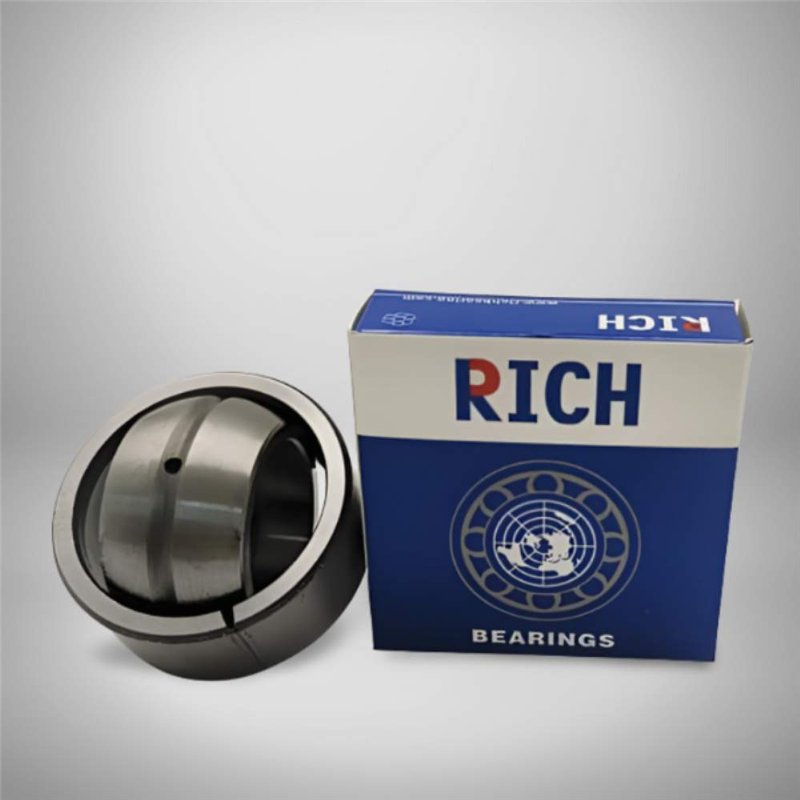

GE 220 ES 2RS RICH Spherical Plain Bearing - 220 x 320 x 135 mm

The GE 220 ES 2RS RICH is a massive, sealed spherical plain bearing engineered to accommodate substantial angular misalignment and oscillations in extremely heavy-duty mechanical linkages and assemblies while providing excellent protection against contaminants. This bearing has key dimensions of 220 mm inner diameter, 320 mm outer diameter, and a significant width of 135 mm. The outer ring width (C) is 100 mm. It features a robust steel/steel friction pair for exceptional durability and is made in China. The "-2RS" designation indicates that this bearing is equipped with seals on both sides to retain lubricant and effectively exclude dirt and moisture in demanding applications.

Key Specifications:

  • Bearing Type: Spherical Plain Bearing
  • Model:** GE 220 ES 2RS RICH
  • Inner Diameter (d):** 220 mm
  • Outer Diameter (D):** 320 mm
  • Width (B):** 135 mm
  • Outer Ring Width (C):** 100 mm
  • Friction Pair:** Steel/Steel
  • Weight:** 35.42 kg
  • Sealing:** -2RS (Seals on both sides)
  • Country of Origin:** China

Key Features:

  • Spherical Design:** Allows for very significant angular movement and effectively reduces stress in connected, extremely heavy-duty components.
  • Sealed Construction (-2RS):** Provides outstanding protection against dust, dirt, and moisture, significantly extending bearing life and minimizing maintenance in the most challenging applications.
  • High Load Capacity:** Capable of withstanding extremely substantial dynamic and static loads due to its large size and robust construction.
  • Robust Construction:** Built for exceptional durability and very long service life in the harshest operating environments.
  • Versatile Use:** Ideal for a wide range of extremely heavy industrial machinery where significant misalignment and contamination are unavoidable factors.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
220
Outer Diameter
320
Width
135
Weight
34
Sealing
Lip Seal On Both Sides
