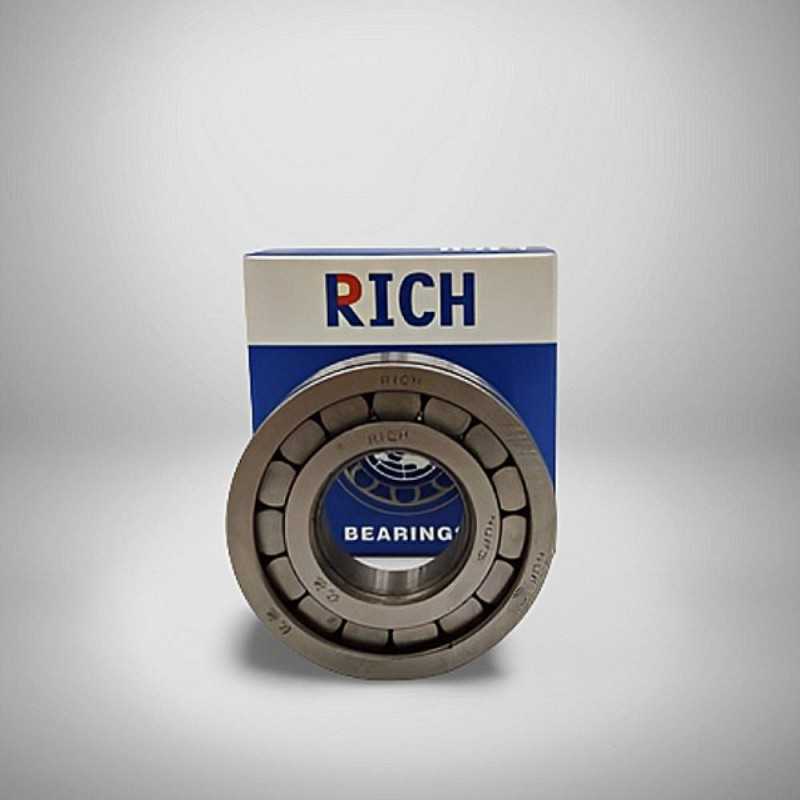

NUP 203 RICH Single Row Cylindrical Roller Bearing - 17 x 40 x 12 mm

The NUP 203 RICH is a single row cylindrical roller bearing designed for applications requiring high radial load capacity. This bearing has key dimensions of 17 mm inner diameter, 40 mm outer diameter, and a width of 12 mm. It features a steel cage and weighs 0.076 kg. The NUP design indicates that the outer ring has two fixed ribs and the inner ring has one fixed rib and one non-fixed rib (loose rib). This configuration allows the bearing to accommodate axial displacement in one direction and also to support axial loads in that direction.

Key Specifications:

  • Bearing Type: Single Row Cylindrical Roller Bearing
  • Model:** NUP 203 RICH
  • Inner Diameter (d):** 17 mm
  • Outer Diameter (D):** 40 mm
  • Width (B):** 12 mm
  • Cage Material:** Steel
  • Weight:** 0.076 kg

Key Features:

  • Cylindrical Roller Design:** Provides high radial load capacity.
  • NUP Design:** Outer ring with two fixed ribs, inner ring with one fixed and one loose rib, allowing for axial displacement in one direction and axial load support.
  • Steel Cage:** Offers good strength and durability.
  • Separable Components:** The inner ring assembly and outer ring can be mounted separately.
  • Versatile Application:** Suitable for various industrial applications such as gearboxes, electric motors, and pumps where high radial loads and some axial load capacity are needed.

Data sheet

Inner Diameter
17
Outer Diameter
40
Width
12
Weight
0,07
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Cylindrical Roller Bearing
