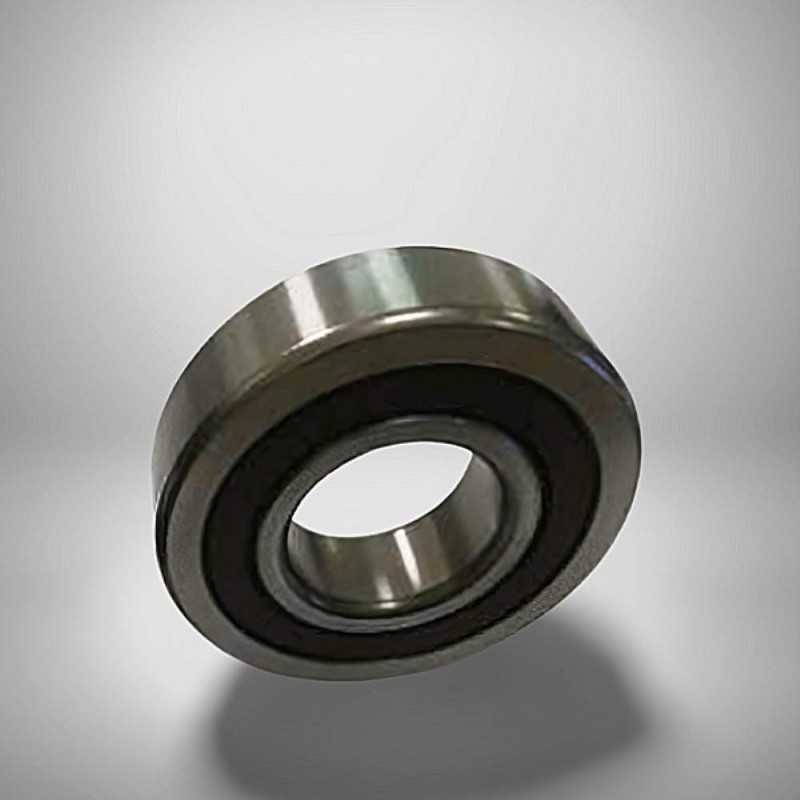

RMS9-2RS RICH Single Row Deep Groove Ball Bearing - 28.57 x 71.43 x 20.627 mm, Double Sealed, Normal Clearance

The RMS9-2RS RICH is a single row deep groove ball bearing designed for applications requiring smooth and efficient rotation with enhanced sealing. It has key dimensions of 28.57 mm inner diameter, 71.43 mm outer diameter, and a width of 20.627 mm. This bearing weighs approximately 0.39 kg. It features a steel cage and double-sided rubber contact seals (2RS) for excellent protection against dust and contaminants. The bearing has CN (normal) clearance. It is made in China. Single row deep groove ball bearings can accommodate radial and axial loads in both directions.

Key Specifications:

  • Type:** Single Row Deep Groove Ball Bearing
  • Model:** RMS9-2RS RICH
  • Inner Diameter (d): 28.57 mm (1.125 inches)
  • Outer Diameter (D): 71.43 mm (2.8125 inches)
  • Width (B): 20.627 mm (0.8121 inches)
  • Cage Material:** Steel
  • Clearance:** CN (Normal)
  • Sealing:** Double-sided rubber contact seals (2RS)
  • Weight:** 0.39 kg
  • Country of Origin:** China

Key Features:

  • Deep Groove Geometry:** Suitable for moderate radial and axial loads in both directions.
  • Double Rubber Contact Seals (2RS): Provides excellent protection against dust and contaminants, extending bearing life.
  • Steel Cage:** Offers high strength and durability.
  • Normal Clearance (CN): Standard radial internal clearance.
  • Imperial Dimensions:** Common in certain applications and industries.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
28,57
Outer Diameter
71.438
Width
20,67
Weight
0,39
Ball Rows
Single Row
Sealing
Lip Seal On Both Sides
Cage
Steel Cage
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
