6202-2RS NR RICH 15x35x11 62022RSNR RICH
search
  • 6202-2RS NR RICH 15x35x11 62022RSNR RICH

6202-2RS NR RICH 15x35x11

RICH
62022RSNR
€1.40
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

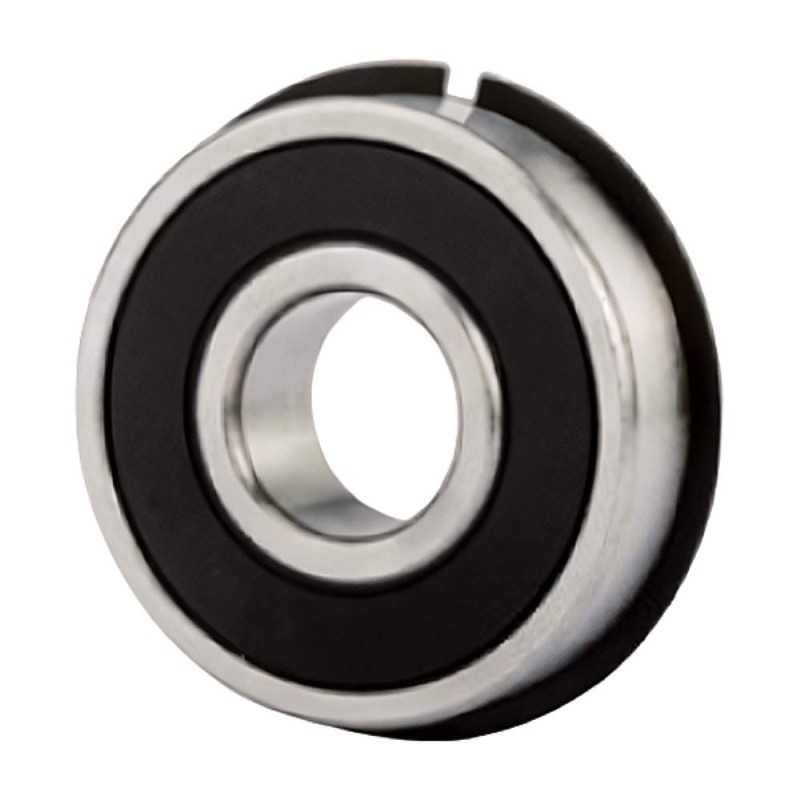

6202-2RSNR RICH Single Row Deep Groove Ball Bearing with Snap Ring Groove and Double Rubber Seals - 15 x 35 x 11 mm, Normal Clearance

The 6202-2RSNR RICH is a single row deep groove ball bearing designed for smooth and efficient rotation, featuring double-sided rubber contact seals (2RS) to protect against contaminants and retain lubricant. It has key dimensions of 15 mm inner diameter, 35 mm outer diameter, and a width of 11 mm. This bearing weighs approximately 0.049 kg and features a steel cage and CN (normal) clearance. It also has a groove on the outer ring with a snap ring for secure axial positioning and is made in China.

Key Specifications:

  • Type:** Single Row Deep Groove Ball Bearing
  • Model:** 6202-2RSNR RICH
  • Inner Diameter (d): 15 mm
  • Outer Diameter (D): 35 mm
  • Width (B): 11 mm
  • Cage Material:** Steel
  • Clearance:** CN (Normal)
  • Groove on Outer Ring:** Yes, with a snap ring
  • Sealing:** Double-sided rubber, contact (2RS)
  • Weight:** 0.049 kg
  • Country of Origin:** China

Key Features:

  • Deep Groove Geometry:** Suitable for moderate radial and axial loads in both directions.
  • Double Rubber Seals (2RS): Provides excellent protection against dust and moisture, extending bearing life.
  • Snap Ring Groove:** Allows for easy and secure axial mounting.
  • Steel Cage:** Offers high strength and durability.
  • Normal Clearance (CN): Standard radial internal clearance.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
15
Outer Diameter
35
Width
11
Weight
0,05
Ball Rows
Single Row
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
