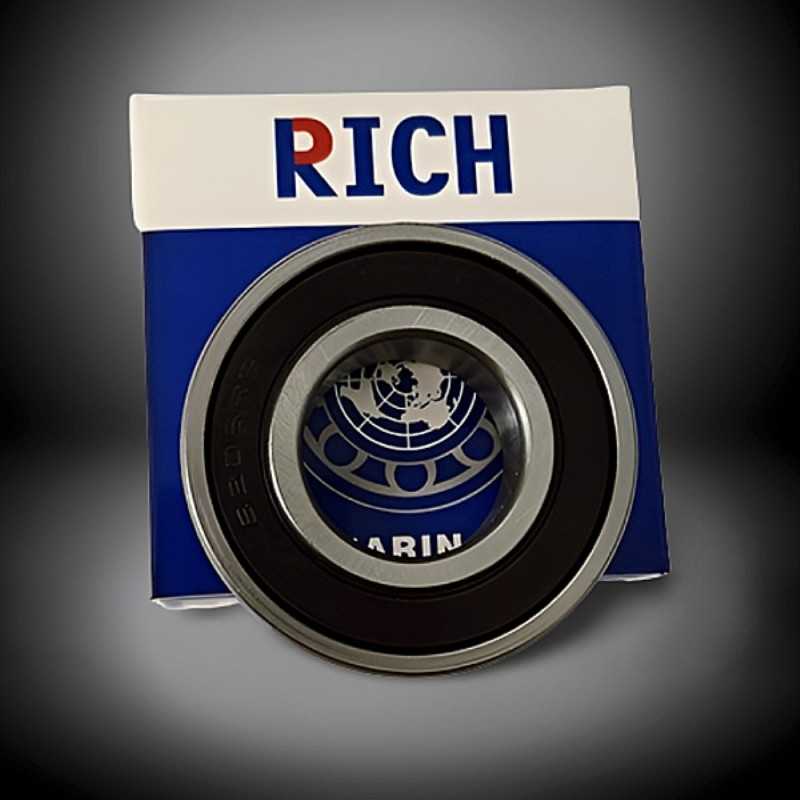

6907-2RS C3 RICH 35x55x10
Rating:
(0)
EUR €
- EUR €
- USD $
6907-2RSC3 RICH Single Row Deep Groove Ball Bearing - 35 x 55 x 10 mm
The 6907-2RSC3 RICH is a single row deep groove ball bearing designed for applications where space and weight savings are important, along with the need to accommodate thermal expansion or higher operating speeds. This bearing has key dimensions of 35 mm inner diameter, 55 mm outer diameter, and a width of 10 mm. It features a steel cage and a C3 radial clearance, which is greater than normal. It weighs 0.087 kg and is made in China. The bearing is equipped with double-sided rubber contact seals (2RS) for effective protection against dust, dirt, and moisture. The C3 clearance is suitable for conditions where thermal expansion due to temperature variations or higher rotational speeds are anticipated.
Key Specifications:
- Bearing Type: Single Row Deep Groove Ball Bearing
- Model:** 6907-2RSC3 RICH
- Inner Diameter (d):** 35 mm
- Outer Diameter (D):** 55 mm
- Width (B):** 10 mm
- Cage Material:** Steel
- Clearance:** C3 (Greater than Normal)
- Sealing:** Double-sided rubber, contact (2RS)
- Weight:** 0.087 kg
- Country of Origin:** China
Key Features:
- Space and Weight Efficient:** Suitable for compact designs.
- Deep Groove Geometry:** Supports radial and axial loads in both directions.
- Steel Cage:** Provides good strength and durability.
- C3 Clearance:** Accommodates thermal expansion and suitable for higher speeds.
- Contact Seals (2RS):** Offers excellent protection against contaminants and helps retain lubricant.
- Versatile Application:** Used in various industrial, electromechanical, and light machinery applications.
- Manufacturing Origin:** Made in China.
Data sheet
Inner Diameter
35
Outer Diameter
55
Width
10
Sealing
Lip Seal On Both Sides
Clearance
C3 (Greater than Normal)
Category
Single Row Deep Groove Ball Bearing
