SB205-14 RICH 22,225x52x27

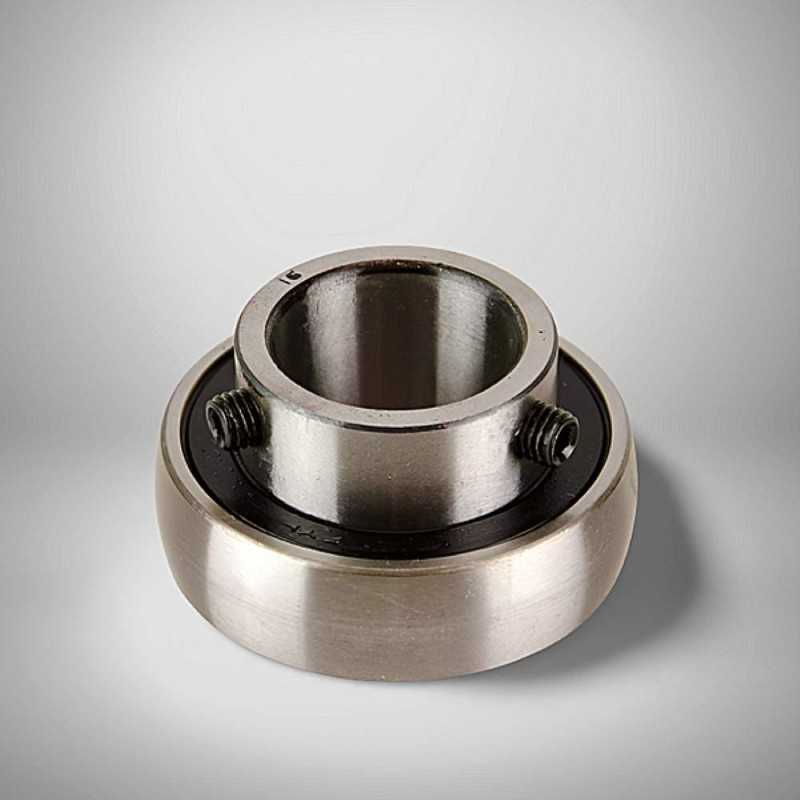

SB205-14 RICH Insert Ball Bearing - 22.225 x 52 x 27 mm

The SB205-14 RICH is a high-quality insert ball bearing, meticulously manufactured by RICH in China. This bearing is designed for straightforward mounting in bearing units and provides reliable performance across various industrial applications. With precise dimensions of a 22.225 mm bore (equivalent to 7/8 inch), a 52 mm outer diameter, and a 27 mm width, it ensures optimal fit and smooth operation.

This RICH insert ball bearing features an inner ring width (B) of 27 mm and an outer ring width (C) of 15 mm. The extended inner ring has a distance from the face to the grub screw (S1) of 19.5 mm, and a distance from the opposite face to the grub screw (S2) of 5.5 mm. The minimum chamfer dimension (r min.) is 1 mm. It is equipped with a 1/4-28UNF thread (G), facilitating secure mounting. It also has a rounded outer ring, which helps accommodate minor shaft misalignments.

Weighing 0.18 kg, this robust yet efficient component from RICH ensures consistent and durable operation. It is ideally suited for applications requiring reliable rotation, such as agricultural machinery, conveying systems, and general industrial equipment, where precise dimensions and strong performance are essential.

Key Specifications:

• Type: Insert Ball Bearing
• Brand: RICH
• Model: SB205-14 RICH
• Dimensions: 22.225 mm bore x 52 mm outer diameter x 27 mm width
• Bore Diameter (d): 22.225 mm
• Outer Diameter (D): 52 mm
• Width (B): 27 mm
• Outer Ring Width (C): 15 mm
• Distance S1: 19.5 mm
• Distance S2: 5.5 mm
• Minimum Chamfer (r min.): 1 mm
• Thread (G): 1/4-28UNF
• Rounded Outer Ring: Yes
• Weight: 0.18 kg
• Country of Origin: China

Key Advantages:

• Ease of Installation: Designed as an insert bearing for straightforward mounting into compatible housings.
• Self-Aligning Capability: The rounded outer ring allows for minor shaft misalignments, reducing stress on the bearing.
• Versatile Performance: Suitable for a wide array of industrial applications, offering reliable rotation and load support.
• Optimal Dimensions: Precisely engineered to 22.225 x 52 x 27 mm for accurate fitting.
• Secure Mounting: Features a 1/4-28UNF thread for robust attachment.
• Durable Construction: Ensures long-lasting performance and high operational reliability.
• RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance.
