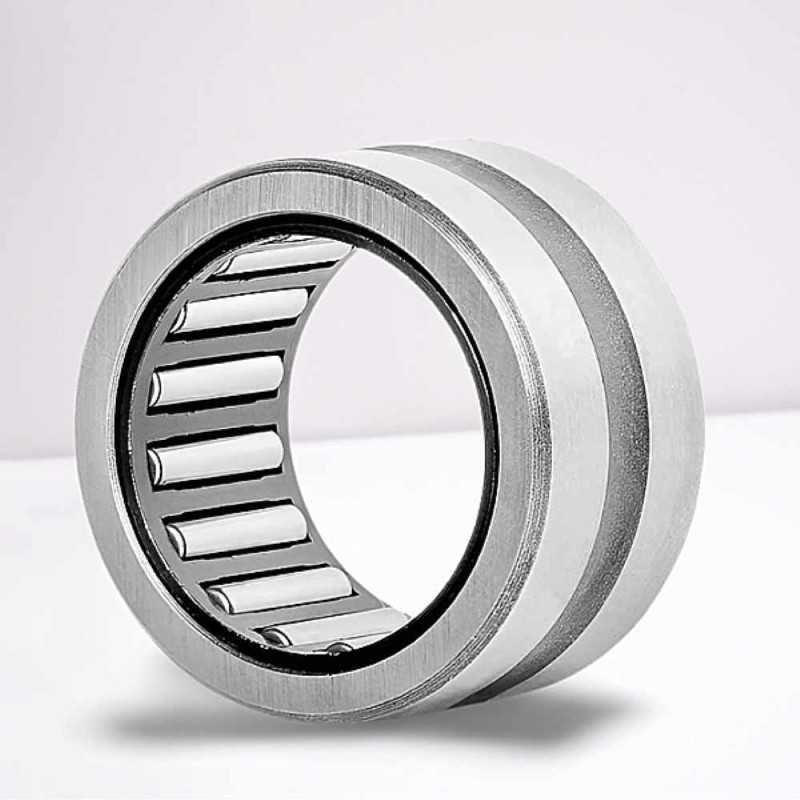

BR 243316 RICH 38,1x52,388x25,4
The BR 243316 RICH needle roller bearing (38.1 x 52.388 x 25.4 mm) without an inner ring offers maximum radial load capacity, a compact design, and a durable steel cage.
BR 243316 RICH Needle Roller Bearing without Inner Ring - 38.1 x 52.388 x 25.4 mm
Technical Specifications:
- Product Type: Needle Roller Bearing without Inner Ring
- Model Designation: BR 243316
- Brand: RICH
- Bore Diameter (ID): 38.1 mm
- Outer Diameter (OD): 52.388 mm
- Width: 25.4 mm
- Cage Material: Steel
- Weight: 0.154 kg
- Country of Origin: China
The BR 243316 RICH is a heavy-duty needle roller bearing without an inner ring, designed to handle high radial loads in applications with restricted space. This design requires the shaft raceway to be hardened and ground, resulting in the largest possible shaft diameter for a given housing bore and a highly compact assembly. The bearing is fitted with a robust steel cage which ensures precise roller guidance, contributing to stable and reliable performance even under challenging operational conditions. With dimensions of 38.1 mm bore, 52.388 mm outer diameter, and 25.4 mm width, the BR 243316 RICH provides a powerful, space-efficient solution for transmissions and heavy machinery.
Key Performance Advantages:
- Maximized Load Capacity: High radial load-carrying capability due to the full complement design potential.
- Space-Efficient: Minimal cross-section for highly compact bearing arrangements.
- Steel Cage: Provides precise guidance for reliable high-speed operation.
- RICH Quality: A durable component optimized for use with hardened shaft raceways.
Data sheet
Inner Diameter
38,1
Outer Diameter
52,388
Width
25,4
Weight
0,154
Clearance
CN (Normal)
